Every 400 Hours

BM004611
BM004611-UN-11FEB16

H97612
H97612-UN-25AUG10

H104960
H104960-UN-29FEB12

H104961
H104961-UN-29FEB12

S660 and S670 / S680 and S690

H104962
H104962-UN-29FEB12

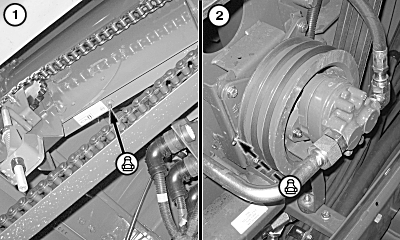

  1. Unloading Auger Upper Gearcase - Grease fitting.

  2. Header/Reel Drive Pump Sheave Bearing - Grease fitting.

  3. NOTE: Machines equipped with multi-speed feeder house drive have five grease fittings.

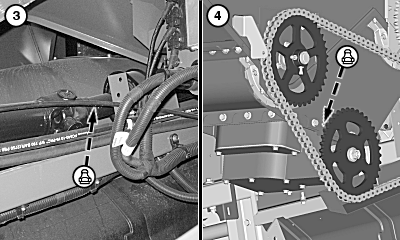

    Primary Countershaft Universal Joint Spline (Non-Multi-Speed Feeder House) - Rotate to access fitting and grease.

  4. IMPORTANT: Pump 10 shots of grease into fitting.

    S680 and S690 Machines Only: Vertical Unloading Auger Upper Gearcase - Grease fitting.

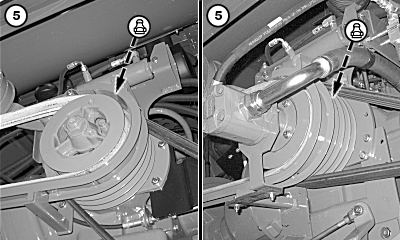

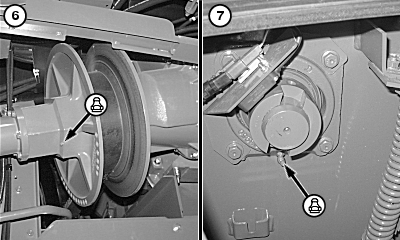

  5. Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.

  6. IMPORTANT: Remove pipe plug and install grease fitting. Pump 40—45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

    Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug-in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.

  7. Feed Accelerator Bearing (Left Side) - Grease fitting.
