Every 400 Hours (S660 and S670 ProDrive™ Machines)

1. NOTE:

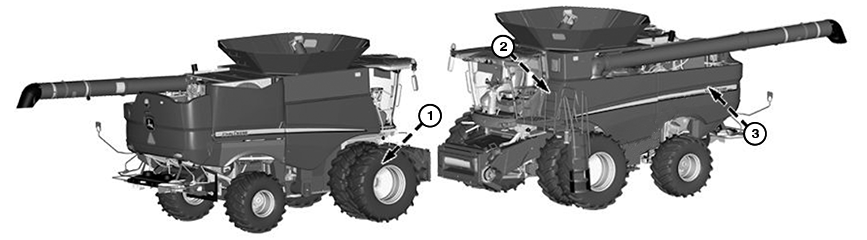

   BML006247-UN-31JUL20


   BML006248-UN-31JUL20


   BML006249-UN-31JUL20

   A - Filter

   B - Dipstick

   C - Filter

   It is not necessary to drain system when replacing filters.

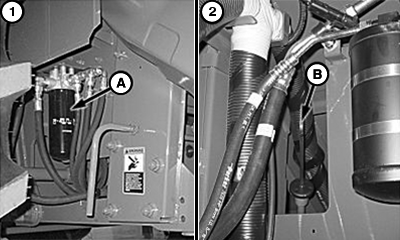

   Main Engine Gear Case Lube Filter - Remove and replace filter (A). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. Primary Countershaft Gear Case Oil (Fixed Speed Feeder House) - Check primary countershaft gear case oil level with dipstick (B). Add oil as needed.

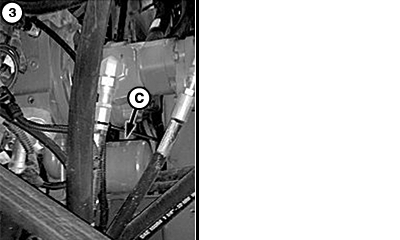

3. Hydrostatic Charge Filter - Remove and replace filter (C). Coat seal on new filter with oil. Hand tighten, then tighten to specification.

   Item	Measurement	Specification
   Hydrostatic Charge Filter	Torque	45 N·m (33 lb·ft)
