Air Compressor Switch

H95217
H95217-UN-28JAN10

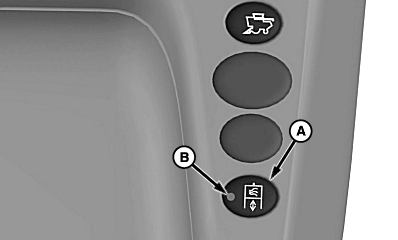

A - Air Compressor Switch

B - Indicator Light

Air compressor switch (A) allows operator to use compressed air that is supplied from the air compressor on the engine platform. Indicator light (B) turns ON indicating that compressed air is ready to be used.

See Air Compressor System in Service Engine section for further information.

System Requirements:

  • Key switch must be in RUN position.
  • Multi-function lever in neutral position.
  • Air compressor switch ON.
  • Park brake engaged (Manual 3—speed transmission).

OU90500,00005AB-19-20160519
