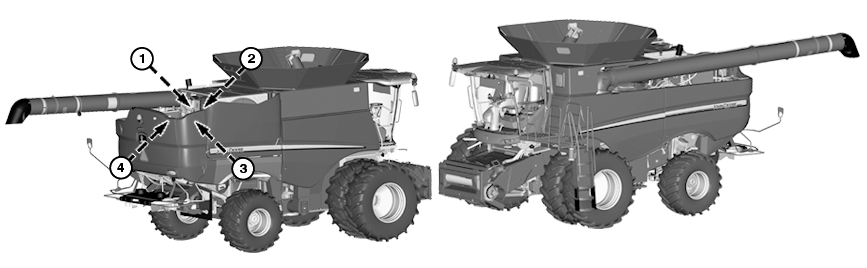

Every 250 Hours (S680 and S690)

1. IMPORTANT:


   BM004691-UN-29FEB16


   H97489-UN-02AUG10


   BM004692-UN-29FEB16

   A - Oil Filter

   B - Drain

   C - Cap

   D - Dipstick

   E - Fuel Tank Breather

   Change oil and filter every 100 hours if fuel contains a high sulfur content.

   Change oil and filter every 250 hours if crankcase filled with seasonal viscosity grade oil or John Deere Torq-Gard™.

   If using John Deere Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

   Only to S680 equipped with Tier 3/Stage IIIA Engine and if using John Deere Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 100 percent. Example: 250 Hours extends to 500 Hours¹.

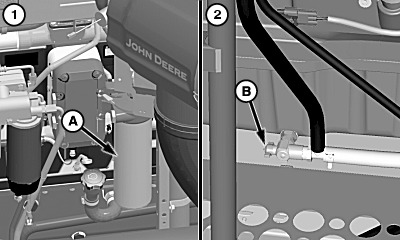

   Engine Crankcase Oil Filter - Remove and replace oil filter (A).

---




2. Engine Crankcase Oil - Open drain (B) to remove oil.

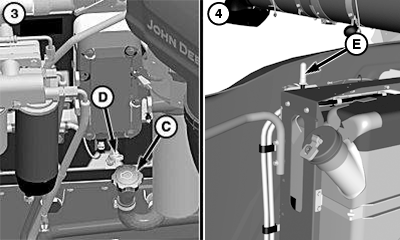

3. Engine Crankcase Oil - Remove cap (C) to fill and check oil level with dipstick (D) after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (E). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
