Every 400 Hours

1. IMPORTANT:

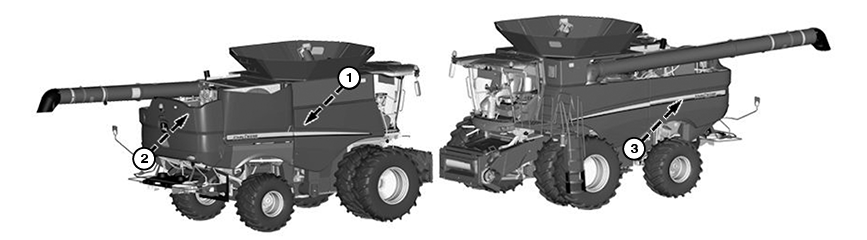

   BML006251-UN-31JUL20

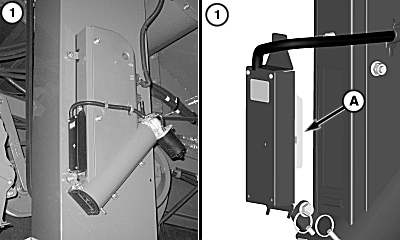

   H97362-UN-14JUL10

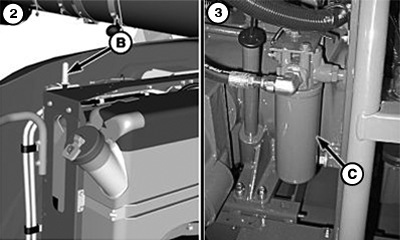

   BML006250-UN-31JUL20

   A - Moisture Sensor Module

   B - Fuel Tank Breather

   C - Filter

   Static electricity can damage the moisture sensor module when touching the sensing plate. To avoid damage, ensure that you always touch a metal surface on the machine with at least one hand or arm before working on or cleaning the moisture sensor module.

   Moisture Sensor – Remove and clean moisture sensor module (A) when operating in weeds, green crops, or small grains (canola).

---




2. Fuel Tank Breather - Remove and replace fuel tank breather (B).

3. NOTE: It is not necessary to drain system when replacing filters.

   Main Engine Gear Case Filter - Remove and replace filter (C). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.
