Air Compressor System — Service and Maintenance


Drain Water from Air Compressor Reservoir

BM004700
BM004700-UN-01MAR16

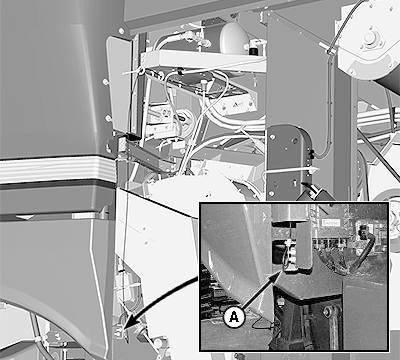

A - Drain Cable

Daily pull air tank drain cable (A) and drain water from reservoir.

IMPORTANT: Accumulation of water into air compressor reservoir causes corrosion and deterioration of it.

Water on certain temperature and pressure conditions expands and may explode reservoir.

CQ282906
CQ282906-UN-12JUN09

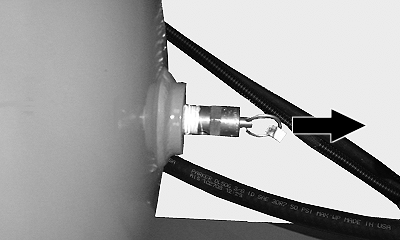

If necessary, to perform any repair on air compressor reservoir as well as in other component of the system, empty air compressor reservoir pulling the unloading valve.
