Feeder House Drum (Hydraulic Tilt)—Height Adjustment

CAUTION:

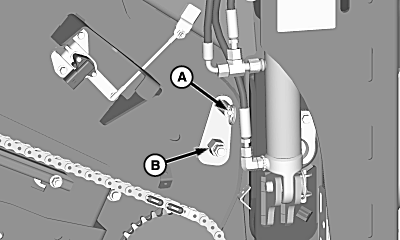

H109756
H109756-UN-04FEB14

Corn Only Position

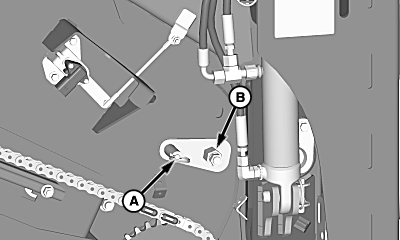

H109757
H109757-UN-04FEB14

Small Grain Position

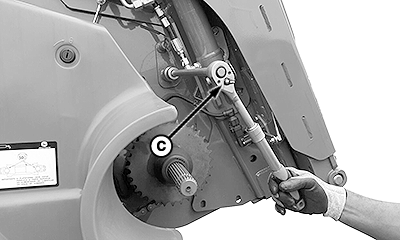

BM005232
BM005232-UN-28OCT16

A - Pin

B - Drum Height Handle

C - Socket or Wrench

Raise feeder house, lower safety stop, shut OFF engine, set park brake and remove key.

Open feeder house shields.

Pull and hold pin (A) while rotating drum height handle (B) to desired crop position on both sides.

NOTE: Use a socket or wrench (C) to rotate drum height handle.

Close feeder house shields.
