Harvest Smart™ Feed Rate (If Equipped)

NOTE:

H94473-UN-31MAR10

Combine Setup Icon

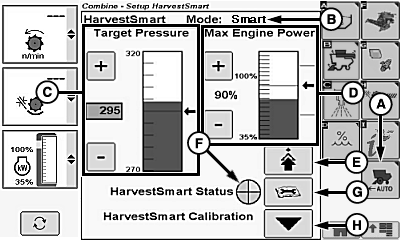

H106433-UN-03JAN13

A - Harvest Smart™ Feed Rate Setup Icon

B - Operating Mode

C - Target Pressure

D - Max Engine Power

E - Advanced Setup Icon

F - Harvest Smart™ Status Indicator

G - Diagnostic Readings Icon

H - Harvest Smart™ Calibration Icon

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when Harvest Smart™ Feed Rate setup icon (A) is highlighted.

Refer to Harvest Smart™ Feed Rate section for further information on operating the following:

• Operating Mode (B)
  • OFF
  • Smart
  • Capacity
• Target Pressure (C)
• Max Engine Power (D)
• Advanced Setup Icon (E)
  • Max Harvest Speed
  • Sensitivity
• Harvest Smart™ Status Indicator (F)
• Diagnostic Readings Icon (G)
• Harvest Smart™ Calibration Icon (H)
