Harvest Smart™ Feed Rate—Additional Information (Unloading Auger ON and Field Conditions)

• NOTE:

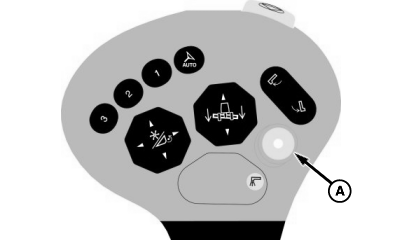

  H95955-UN-01NOV10

  A - Unloading Auger Drive Switch

  Harvest Smart™ maintains ground speed of machine when unloading auger button is pressed (if multi-function lever is not moved rearward). When unloading system is engaged, system remains in control; however, response is limited to prevent sudden changes that would overrun grain cart.
  When unloading auger drive switch (A) is pressed, Harvest Smart™ will still be active. If operator wants manual control while unloading, pull multi-function lever rearward until machine slows slightly to temporarily deactivate system. Operator now has full control of ground speed. When unloading auger button is shut OFF, system automatically reactivates and controls ground speed.
• When crop conditions are highly variable, operator should move multi-function lever rearward to slow and limit entry speed into heavier crop conditions. After 5 seconds move multi-function lever fully forward.

•
  H94473-UN-31MAR10

  Combine Setup Icon

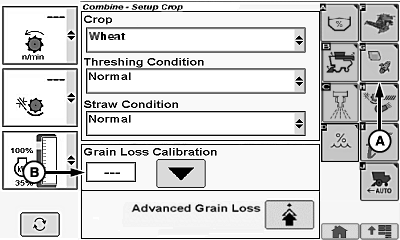

  H105929-UN-05DEC12

  A - Crop Setup Icon

  B - Grain Loss Calibration Value

  If system consistently makes machine drive faster than normal, increase grain loss calibration value by 2 or 3. If system consistently makes machine drive slower than normal, decrease grain loss calibration value by 2 or 3.
  1. Touch or press confirm switch when combine setup icon is highlighted.
  2. Touch or press confirm switch when crop setup icon (A) is highlighted.
  3. Touch or press confirm switch when grain loss calibration value (B) is highlighted.
  4. Select desired grain loss calibration value:

     Non-Touchscreen or Touchscreen: Rotate selection dial until desired grain loss calibration value is shown. Press confirm switch to save value.

     Touchscreen Only: Enter desired grain loss calibration value on numeric display. Touch enter/accept icon to save value.

---
