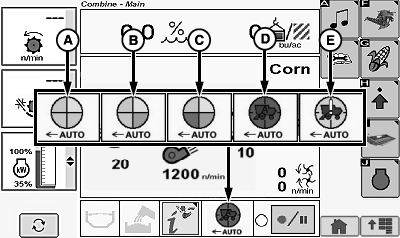

Harvest Smart™ Feed Rate (If Equipped) (System Monitoring Icons)

H106523-UN-14JAN13

• (A) Icon - system is installed on machine, but currently OFF
• (B) Icon - system has been placed in a valid operating mode (Smart or Capacity)
• (C) Icon - system is ready to be activated by the operator
• (D) Icon - system is active and working normally
• (E) Icon - system is limited by ground speed setting of multi-function lever

Refer to Harvest Smart™ Feed Rate—Status Identifications in the Harvest Smart™ Feed Rate section for further information.
