Separator Grate Covers (If Equipped)

H107180
H107180-UN-07MAR13

Standard Cast Grate Covers/Heavy-Duty Grate Covers

H54512
H54512-UN-01APR99

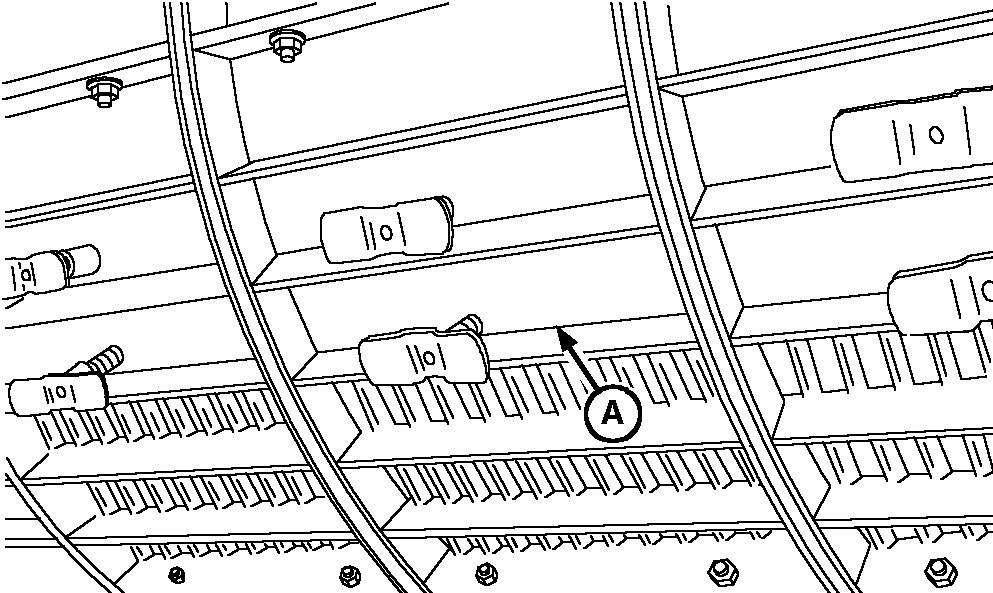

A - Separator Grate Covers

Recommended for very dry small grain. Covers (A) are installed on separator grates to help balance chaff load to cleaning shoe.


Standard Cast Grate Covers

  • Install two rows (eight covers) on right-hand side and three rows (twelve covers) on left-hand side. Make adjustments as necessary depending on conditions.

Heavy-Duty Grate Covers

  • Install one row (four covers) on right-hand side and two rows (eight covers) on left-hand side. Make adjustments as necessary depending on conditions.

OUO6075,0001410-19-20130308
