Video Interface Capability

NOTE:

H108461-UN-03JUL13

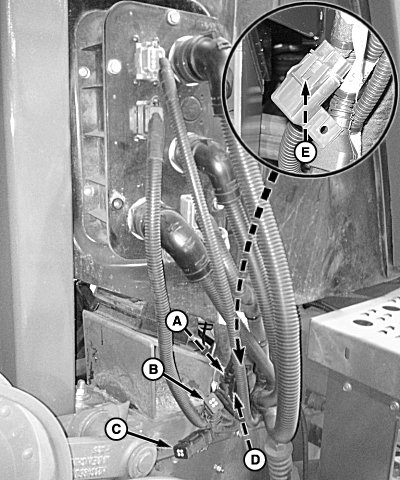

A - Video Input (Armrest)

B - Video Input (Armrest)

C - Video Input (Armrest)

D - Video Input (Cornerpost)

E - In-Line Fuse

Connectors labeled ADU 01, ADU 02, ADU 03 feed video signals to the display on the armrest.

Connector labeled CPDU 01 feeds a video signal for an optional display on the cornerpost.

Machine is equipped with four camera video inputs which are located at the right-hand side of operator’s station.

NOTE: GreenStar™ 3 CommandCenter™ display on armrest supports one video signal.

GreenStar™ 3 2630 display on armrest supports three video signals.

Video input (A—C) feeds video signals to the armrest display.

Video input (D) connects to the GreenStar™ 3 2630 Display (optional) mounted on the cornerpost.

Video inputs are protected with an in-line fuse (E).

See your John Deere dealer for further information on video compatible camera solutions.
