Separator Grate Interrupter Locations (If Equipped)

1. IMPORTANT:

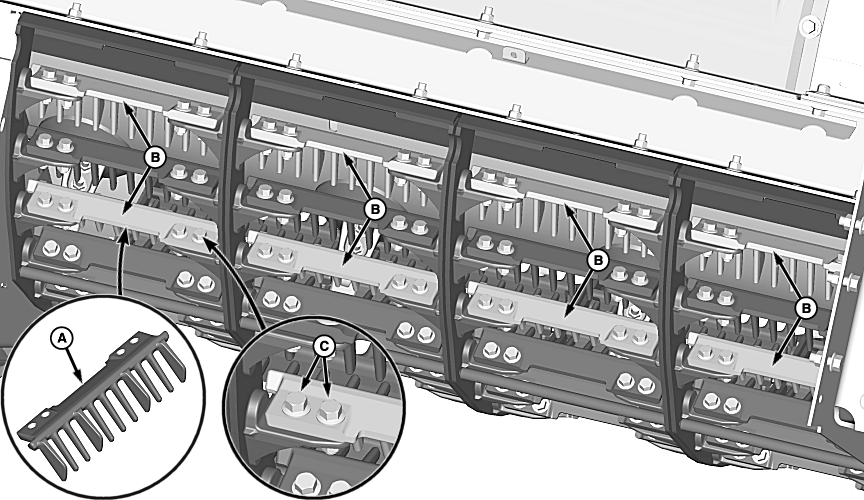

   H99901-UN-21JAN11

   A - Separator Grate Interrupters

   B - Locations (8 used)

   C - Cap Screws and Nuts (32 used)

   Separator grate interrupters are intended for use on rows one and rows three on right-hand side of separator grates as shown. Installation in other locations may cause interference or a reduction in machine performance.

   Verify that rotor is free spinning after installation of separator grate interrupters before starting machine or engaging separator.

   Separator grate interrupters (A) MUST be installed in locations (B) as shown.

---




2. Retain separator grate interrupters with cap screws and nuts (C).

3. Tighten cap screws to specification.

   Item	Measurement	Specification
   Cap Screws	Torque	73 N·m (54 lb.-ft.)
