Park Brake Switch (If Equipped)

NOTE:

H94718-UN-27JAN10

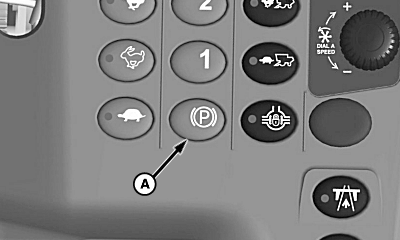

A - Park Brake Switch

Park brake switch (A) manually or automatically engages/disengages park brake preventing machine movement.

Automatic Mode:

NOTE: Park brake engages each time multi-function lever is set to neutral position or if engine is shut OFF.

If multi-function lever is in neutral position and speed is less than 1.5 km/h (1 mph), park brake is applied. If multi-function lever is moved out of neutral position, park brake is released.

Manual Engagement (Default Mode):

If multi-function lever is in neutral position and speed is less than 3.0 km/h (1.9 mph), park brake is applied. If multi-function lever is moved out of neutral position or speed is greater than 1.5 km/h (1 mph) an alarm sounds.

• Park Brake Applied:
  • Press park brake switch to activate park brake. Park brake indicator on cornerpost illuminates indicating park brake is engaged.
• Park Brake Released:
  • Press park brake switch to disengage park brake when multi-function lever is in neutral position. Park brake indicator on cornerpost turns OFF. Park brake is still engaged until multi-function lever is moved out of neutral position returning to automatic mode.
