Standard Feed Accelerator Wear Strips—Replacing

CAUTION:

H85626-UN-27MAR06

H85627-UN-27MAR06

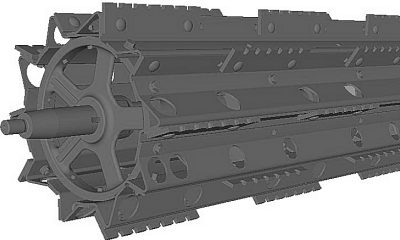

Feed Accelerator Wings and Wear Strips (Standard)

A - Round Head Cap Screws

B - Feed Accelerator Wear Strip

C - Cap Screws

D - Feed Accelerator Wings

NOTE: Wear strips can be reversed for additional wear.

Feed accelerator wings and wear strips can be replaced without removing the feed accelerator. Replace feed accelerator wings and wear strips in sets of two and opposite of each other to maintain proper balance.

NOTE: If feed accelerator is removed from machine, or has been serviced, tighten clamp bolts before securing wings.

Remove round head cap screws (A) and replace feed accelerator wear strips (B) as required. Tighten round head cap screws to specification.

Item	Measurement	Specification
Feed Accelerator Wear Strip Round Head Cap Screws	Torque	70 N˙m (52 lb-ft)

Remove cap screws (C) and replace feed accelerator wings (D) as required. Tighten cap screws to specification.

Item	Measurement	Specification
Feed Accelerator Wing Cap Screws	Torque	70 N˙m (52 lb-ft)
