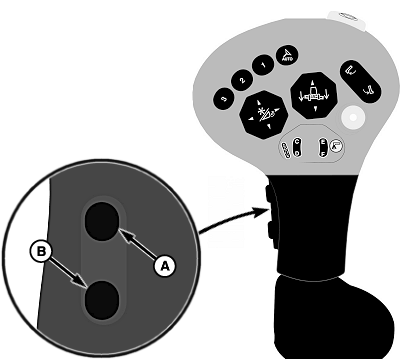

Machine Sync Buttons (If Equipped)

H109728
H109728-UN-29JAN14

A - Increase Button

B - Decrease Button

Machine Sync buttons allow the operator to use the nudge feature in Machine Sync without using the icons on the GreenStar™ 3 2630 display. Refer to Machine Sync Operator’s Manual for further information.

Press increase button (A) to move the tractor forward or press decrease button (B) to move tractor rearward.

    System Requirements:

  • GreenStar™ 3 2630 Display is connected.
  • Engine is running.
  • Road transport disconnect switch must be in field position.

GreenStar is a trademark of Deere & Company

OUO6075,0001740-19-20140130
