Tailboard Vane Angle Adjust Switch (If Equipped)

H94677
H94677-UN-27JAN10

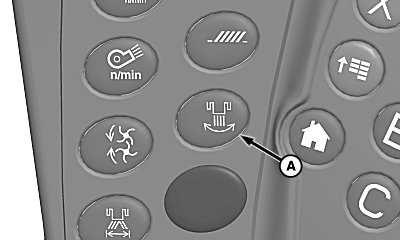

A - Tailboard Vane Angle Adjust Switch

Tailboard vane adjust switch (A) allows operator to adjust direction of tailboard vanes from inside cab.

  1. Press tailboard vane angle adjust switch.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to adjust tailboard vanes to the left or right.

  3. Display shows operator adjustment settings.

OUO6075,0001812-19-20140528
