Interactive Combine Adjustment (If Equipped) (Outside Cab Recommendations)

NOTE:

H94473-UN-31MAR10

Combine Setup Icon

H111421-UN-12JUN14

A - Interactive Combine Adjustment Icon

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when Interactive Combine Adjustment icon (A) is highlighted.

Recommended Machine Changes:

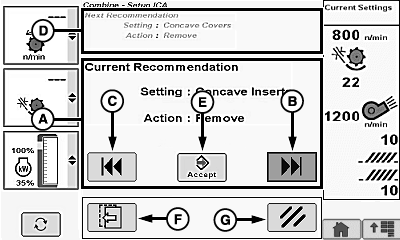

H109939-UN-03MAR14

A - Current Recommendation Area

B - Next Recommendation Icon

C - Previous Recommendation Icon

D - Next Recommendation Area

E - Enter/Accept Icon

F - Previous Page Icon

G - Cancel Icon

NOTE: Next recommendation icon or previous recommendation icon may be grayed out if there are no more recommendations.

Touch or press confirm switch when next recommendation icon (B) or previous recommendation icon (C) is highlighted to advance to next recommendation or return to previous recommendation.

NOTE: Next recommendation area (D) displays upcoming adjustment proposed by the system.

Touch or press confirm switch when enter/accept icon (E) is highlighted to make proposed machine adjustment.

NOTE: Shut down the machine prior to performing the recommended action appears on display when enter/accept icon is selected.

Shut OFF engine, set park brake and remove key.

Perform machine adjustment that was recommended on display.

Touch or press confirm switch when previous page icon (F) is highlighted to return to previous page.

NOTE: Touch or press confirm switch when cancel icon (G) is highlighted to cancel recommendation. Previous machine adjustments will be retained.

System retains inside cab recommended settings when machine is shut OFF.

Interactive Combine Adjustment (System Monitoring):

NOTE:

H106295-UN-14JAN13

Touch or press confirm switch when Interactive Combine Adjustment indicator (A—C) is highlighted.

• (A) Indicator (System Busy) - indicates system adjustments are being performed. Green segment underneath icon moves back and forth indicating that machine is applying settings and waiting for system to stabilize.
• (B) Indicator (Yellow Indicator) - indicates system is ready for verification of improvement settings. Icon with a yellow background flashes or turns solid (flashes for 30 seconds and turns solid) indicating that system made adjustments and is waiting for operator feedback (rating of performance parameters).
• (C) Indicator (Red Indicator) - indicates system has detected a condition shift. Icon with a red background indicates to operator that system has detected a change in machine performance. System believes that operator should evaluate performance of machine and consider optimizing the machine settings.

H108636-UN-26JUL13

A - Arrow Indicators

B - Shoe Loss Indicator

C - Separator Loss Indicator

D - Tailings Volume Indicator

E - Mass Flow Indicator

F - Next Page Icon

NOTE: Bar graphs are a visual guide to see if an increase or decrease occurs over a certain period of time.

• Shoe Loss Indicator (B)
  • Green bars indicate that loss levels are lower than they previously were and that performance has improved.
  • Red bars indicate that loss levels are higher than they previously were.
• Separator Loss Indicator (C)
  • Green bars indicate that loss levels are lower than they previously were and that performance has improved.
  • Red bars indicate that loss levels are higher than they previously were.
• Tailings Volume Indicator (D)
  • Green bars indicate that less tailings volume is being monitored.
  • Red bars indicate that more tailings volume is being monitored.
• Mass Flow Indicator (E)
  • Green bars indicate that feedrate has increased.
  • Red bars indicate that feedrate has decreased.

Touch or press confirm switch when next page icon (F) is highlighted to advance to next page.

Verify Improvement Settings:

NOTE:

H105860-UN-06DEC12

A - Parameter Menus

B - Excess Tailings Box

C - Help Icons

D - Informational Area

E - Next Page Icon

F - Previous Page Icon

Allows operator to answer a series of questions on each parameter to help improve previous loss and quality conditions.

Touch or press confirm switch when desired parameter menu (A) is highlighted:

• Broken Grain
• Chaff/Husks
• Straw Pieces/Cobs
• Unthreshed Material
• Straw Condition
• Separator Loss
• Shoe Loss
• Unthreshed Loss
• Excess Tailings

Each parameter menu displays the following:

• Issue Resolved
• Better
• No Change
• Worse

Once desired selection is chosen, touch or press confirm switch.

Repeat as needed on remaining parameter menus.

Touch or press confirm switch when excess tailings box (B) is highlighted.

• Checked - excess tailings continues to exist.
• Unchecked - excess tailings condition improved.

NOTE: Touch or press confirm switch when desired help icon (C) is highlighted. Information area (D) switches from current machine settings to help information area which provides more details on improvements.

Touch or press confirm switch when next page icon (E) is highlighted to advance to next page.

NOTE: Touch or press confirm switch when previous page icon (F) is highlighted to return to previous page if needed.

Verify Previously Acceptable Parameter Settings:

NOTE:

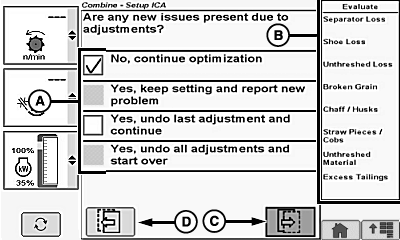

H109940-UN-03MAR14

A - System Evaluation Box

B - Parameters Not Previously Selected

C - Next Page Icon

D - Previous Page Icon

Allows operator to verify that parameters not previously selected are still acceptable or are now unacceptable.

Touch or press confirm switch when desired system evaluation box (A) is highlighted:

NOTE: Boxes are grayed out if that evaluation feature is not available.

• No, continue optimization - allows operator to continue to optimize system. System continues to give recommended machine changes.
• Yes, undo last adjustment and continue - allows operator to undo previous recommended machine change and continue with other recommendations.

Parameters not previously selected (B):

• Broken Grain
• Chaff/Husks
• Straw Pieces/Cobs
• Unthreshed Material
• Straw Condition
• Separator Loss
• Shoe Loss
• Unthreshed Loss
• Excess Tailings

Touch or press confirm switch when next page icon (C) is highlighted to advance to next page.

NOTE: Touch or press confirm switch when previous page icon (D) is highlighted to return to previous page if needed.

Recommended Machine Changes:

NOTE:

H109939-UN-03MAR14

A - Current Recommendation Area

B - Next Recommendation Icon

C - Previous Recommendation Icon

D - Next Recommendation Area

E - Enter/Accept Icon

F - Previous Page Icon

G - Cancel Icon

If performance has decreased, software will continue with outside cab recommendations.

Current recommendation area (A) displays the recommended machine setting changes.

NOTE: Next recommendation icon or previous recommendation icon may be grayed out if there are no more recommendations.

Touch or press confirm switch when next recommendation icon (B) or previous recommendation icon (C) is highlighted to advance to next recommendation or return to previous recommendation.

NOTE: Next recommendation area (D) displays upcoming adjustment proposed by the system.

Touch or press confirm switch when enter/accept icon (E) is highlighted to make proposed machine adjustment.

NOTE: Shut down the machine prior to performing the recommended action appears on display when enter/accept icon is selected.

Shut OFF engine, set park brake and remove key.

Perform machine adjustment that was recommended on display.

Touch or press confirm switch when previous page icon (F) is highlighted to return to previous page.

NOTE: Touch or press confirm switch when cancel icon (G) is highlighted to cancel recommendation. Previous machine adjustments will be retained.

System retains inside cab recommended settings when machine is shut OFF.

Optimization Complete:

H106314-UN-10DEC12

A - Optimization Complete

NOTE: As yield and field conditions change throughout the day, Interactive Combine Adjustment parameters MUST be restarted and adjusted.
