Feed Accelerator Belt—Replacing

CAUTION:

H96924
H96924-UN-16JUN10

H116822
H116822-UN-07JAN16

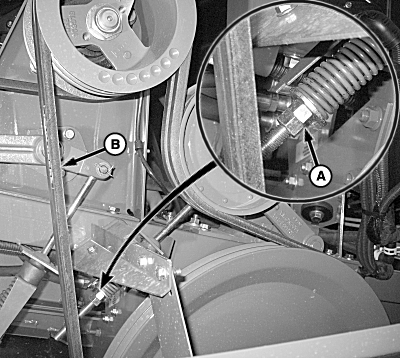

A - Nuts

B - Front Jackshaft Belt

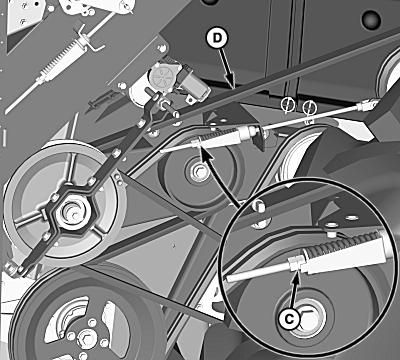

C - Nuts

D - Belt

Shut OFF engine, set park brake and remove key.

Loosen nuts (A) to remove tension from the front jackshaft belt (B).

Loosen nuts (C) to remove tension on shoe, fan, and conveyor auger belt (D).

Remove both belts to allow removal of the feed accelerator belt.

H96926
H96926-UN-16JUN10

A - Lever

B - Bracket

Push lever (A) up and out of notch in bracket (B) to relieve belt tension from the accelerator belt.

H86422
H86422-UN-28JUL06

Feed Accelerator Belt (Standard Speed High Capacity)

H75090
H75090-UN-06FEB03

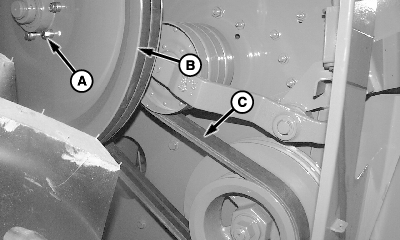

Feed Accelerator Belt (High-Speed High Capacity)

A - Cap Screws (6 Used)

B - Sheave

C - Feed Accelerator Belt

Remove cap screws (A) and sheave (B).

Remove feed accelerator belt (C) and install replacement belt.

Install sheave and retain with cap screws.

Push up lever and into the notch in bracket.

Adjust feed accelerator belt tension so washer is positioned between end of gauge and bottom of step.

Install shoe, fan, and conveyor auger belt and front jackshaft belt.

Adjust tension for belts so washer is positioned between end of gauge and bottom of step.

OUO6075,00041C3-19-20160411
