Overshot Beater Floor (If Equipped)—Removing (Premium Residue)

1. IMPORTANT:


   H115544-UN-20AUG15

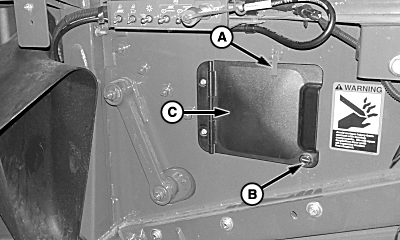

   A - Clip

   B - Lock

   C - Cleaning Shoe Access Door

   Shut OFF engine, set park brake and remove key.

   NOTE: Overshot beater floor should be installed for corn/large grain and removed for small grain.

   Open clip (A) and turn lock (B) to open cleaning shoe access door (C).

---




2. NOTE:


   H113090-UN-03MAR15

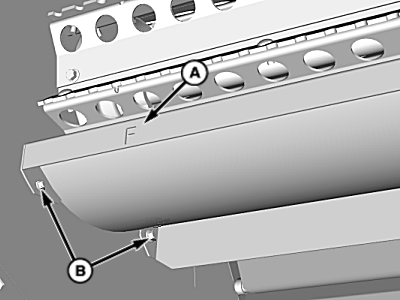

   A - Overshot Beater Floor

   B - Cap Screws and Nuts

   Two people are required to remove the overshot beater floor. One person supports the overshot beater floor, while the other person removes the cap screws and nuts.

   Support overshot beater floor (A) and remove cap screws and nuts (B).

---
