Residue Material Handling Options


Deluxe Residue

NOTE:

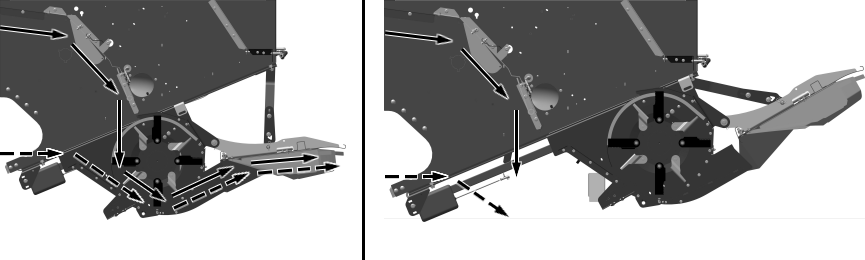

H118032
H118032-UN-05APR16

Chopping Deluxe / Windrowing Deluxe

Solid arrows represent flow of straw. Dashed arrows represent flow of chaff.

Straw and chaff get laid down together in a windrow.


Premium Residue

NOTE:

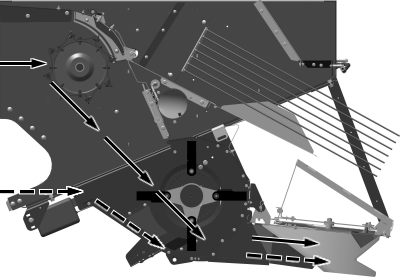

H117674
H117674-UN-11MAR16

Chopping Premium

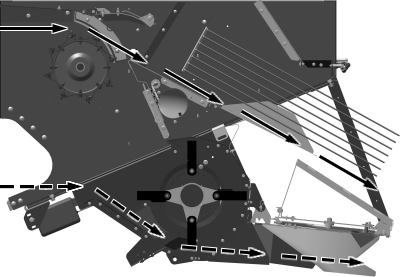

H118033
H118033-UN-05APR16

Windrowing Premium

Solid arrows represent flow of straw. Dashed arrows represent flow of chaff.

Drop straw and spread chaff capability.


Straw Spreader

NOTE:

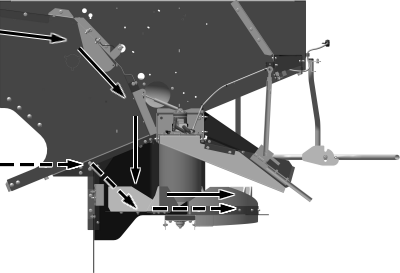

H117675
H117675-UN-11MAR16

Spreader Position

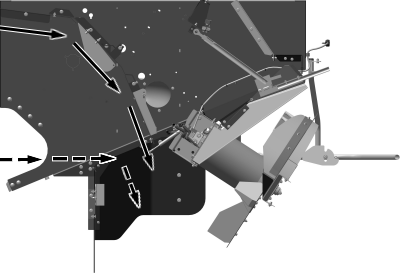

H118034
H118034-UN-05APR16

Windrow Position

Solid arrows represent flow of straw. Dashed arrows represent flow of chaff.

Non-chopping.

OUO6075,00041DD-19-20160405
