General Windrowing Information (Deluxe Residue)

NOTE:

H118224
H118224-UN-20APR16

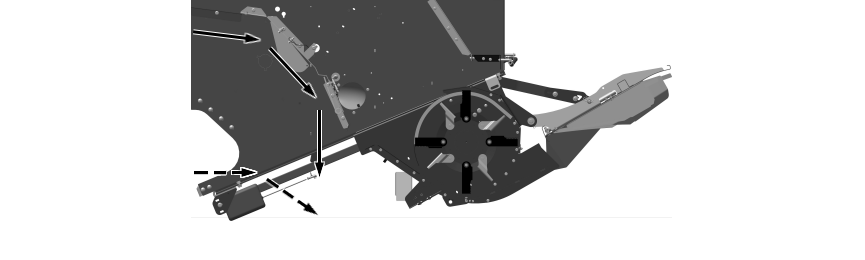

Windrowing Deluxe

Solid arrows represent flow of straw. Dashed arrows represent flow of chaff.

  • Raise chopper fully. See Chopper Adjusting switch later in this section.
  • Shift chopper drive into neutral position. See Chopper Drive Speeds—Changing later in this section.

OUO6075,00041DE-19-20160420
