First 100 Hours (ProDrive Machines)

1. NOTE:


   CQ290059-UN-25FEB14


   H99378-UN-08DEC10

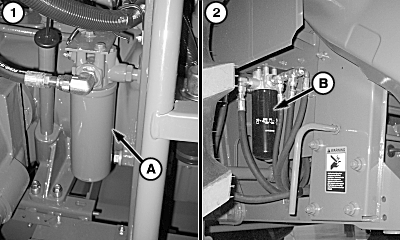

   A - Filter

   B - Filter

   It is not necessary to drain system when replacing filter.

   Main Engine Gear Case Filter - Remove and replace filter (A). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. Main Engine Gear Case Lube Filter - Remove and replace filter (B). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.
