Air Chutes

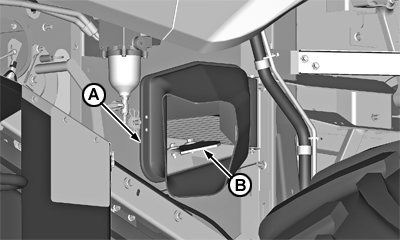

CQ290018-UN-17JUN13

A - Air Chute

B - Air Chute Agitator (If equipped)

Air chute (A) located on both sides of chopper allows cleaning shoe to breathe more freely especially when running on low speed. Depending on harvesting conditions, grain tank quality may be enhanced and feeder house dust reduced.

Air chute agitator (B) prevents crop material from building up and plugging air chutes.
