Side Belt Speed Reduction Switch

NOTE:

H110013
H110013-UN-01APR14

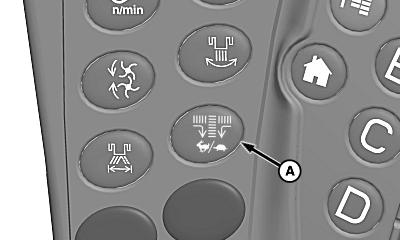

A - Side Belt Speed Reduction Switch

Slowing side draper belts speed enhances feeding performance when crop is harvested on one side of platform, due to irregular shaped fields.

Side belt speed reduction switch (A) allows speed of draper belt to automatically slow to a factory setpoint speed.

  1. Press side belt speed reduction switch.

  2. Slow speed mode engaged will appear on display and draper belt speed automatically slows to factory setpoint speed.

  3. Pressing belt speed reduction switch again or attempting to make manual belt speed adjustments while in slow speed mode automatically returns belt speed to original speed set by operator.

NOTE: If current draper belt speed is slower than factory setpoint speed, system will not engage and a diagnostic trouble code will appear.

See your John Deere dealer if factory setpoint speed needs to be adjusted.
