Side Belt Speed Reduction and Grain Tank Fill Sensor (System Monitoring Icons)

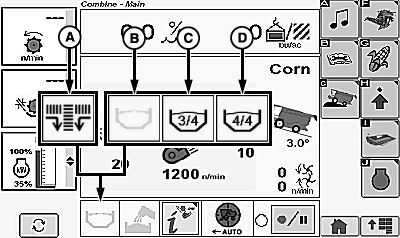

Side Belt Speed Reduction Icon:

H112759-UN-26JAN15

• (A) Icon - indicates that draper belt speed is reduced to a factory setpoint speed

NOTE: If 3/4 full grain tank level is reached, icon toggles between side belt speed reduction icon and 3/4 full icon.

Grain Tank Fill Sensor Icons:

• (B) Icon - indicates that grain tank level has not reached the 3/4 full or 4/4 full sensor
• (C) Icon - indicates that grain tank level has reached the 3/4 full sensor
• NOTE: Every 30 seconds 4/4 full icon flashes for 8 seconds indicating grain tank is full and MUST be unloaded.
  (D) Icon - indicates that grain tank level has reached the 4/4 full sensor
