Video Application (If Equipped)

H95878-UN-29MAR10

Main Menu Icon (Display)/Main Menu Switch (Armrest)

H95851-UN-31MAR10

Video
Application Icon

Touch or press confirm switch when video icon is highlighted.

Contrast Adjusting:

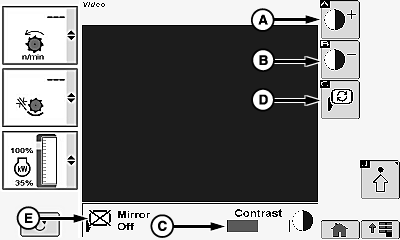

H96255-UN-05OCT10

A - Contrast Increase Icon

B - Contrast Decrease Icon

C - Contrast Bar Graph

D - Mirror Icon

E - Mirror ON/OFF

Touch or press confirm switch when desired icon is highlighted:

• Increase Icon (A) - brightens video display.
• Decrease Icon (B) - darkens video display.

NOTE: Contrast bar graph (C) increases or decreases depending on which icon was selected.

Mirror Settings:

Allows operator to mirror image on screen.

Touch or press confirm switch when mirror icon (D) is highlighted.

NOTE: Mirror ON/OFF (E) toggles to alert operator which angle is displayed.

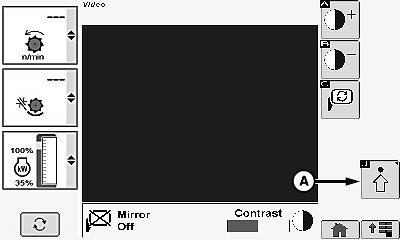

H96254-UN-05OCT10

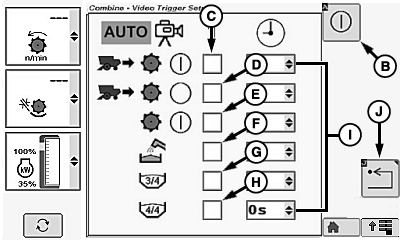

H112851-UN-03FEB15

A - Advanced Settings Icon

B - Video Trigger ON/OFF Icon

C - Reverse with Separator ON Video Trigger

D - Reverse with Separator OFF Video Trigger

E - Separator Video Trigger

F - Unloading Auger Video Trigger

G - 3/4 Grain Tank Video Trigger

H - 4/4 Grain Tank Video Trigger

I - Time Menu

J - Return/Back Icon

Video Setup:

NOTE: Multiple video triggers are supported on the armrest display.

Allows operator to setup and view different areas around machine.

Touch or press confirm switch when advanced settings icon (A) is highlighted.

Touch or press video trigger ON/OFF icon (B) to enable triggers.

NOTE: When video triggers are off, AUTO icon is crossed out.

Screen displays the following:

• Reverse with Separator ON Video Trigger (C)
• Reverse with Separator OFF Video Trigger (D)
• Separator Video Trigger (E)
• Unloading Auger Video Trigger (F)
• 3/4 Grain Tank Video Trigger (G)
• 4/4 Grain Tank Video Trigger (H)

NOTE: Video automatically appears on display when a trigger condition is met (example: rear view video appears on display when machine is moved rearward).

Touch or press confirm switch when desired video trigger boxes are highlighted.

• Checked - displays video.
• Unchecked - will not display video.

Touch or press confirm switch when time menu (I) for desired video box is highlighted.

Touch or press confirm switch when desired time is highlighted.

NOTE: Allows camera to remain viewable for an extended time after condition changes (example: rear video remains viewable an extended time even after multi-function lever is moved forward).

Touch or press confirm switch when return/back icon (J) is highlighted.

H95878-UN-29MAR10

Main Menu Icon (Display)/Main Menu Switch (Armrest)

H95845-UN-31MAR10

Combine Main
Application Icon

Touch or press confirm switch when combine main page icon is highlighted.
