Separator Grate Types

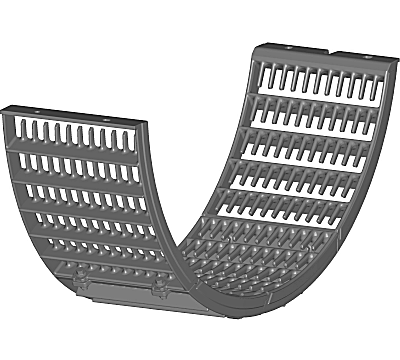

H107177-UN-06MAR13

Standard Cast Separator Grate

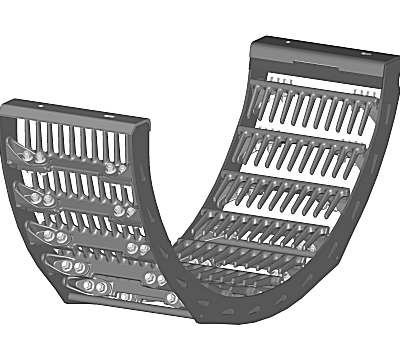

H107178-UN-06MAR13

Heavy-Duty Separator Grate

• Standard Cast Separator Grates - come standard on all machines, except for rice and small tough grain packages.
• Heavy-Duty Separator Grates - are used in tough crop situations. These grates are option on all Variable Stream Rotor machines, but standard on small tough grains, rice, and tough rice packages.
