Change Crops and Grain Loss Settings

Crop Menu:

H94473-UN-31MAR10

Combine Setup Icon

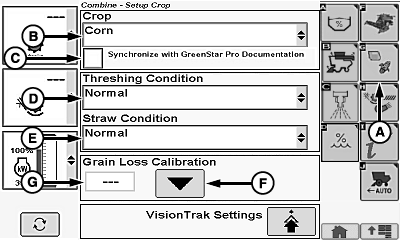

H112815-UN-09FEB15

A - Crop Setup Icon

B - Crop Menu

C - GreenStar™ Pro Documentation

D - Threshing Condition Menu

E - Straw/Cob Condition Menu

F - Grain Loss Calibration Icon

G - Grain Loss Calibration Value

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when crop setup icon (A) is highlighted.

Touch or press confirm switch when crop menu (B) is highlighted.

Crop menu displays the following:

Alfalfa	Lentils	Rye
Barley	Lupins	Safflower
Barley - Spring1	Millet	Sorghum
Barley - Winter1	Mustard	Soybeans
Canola	Navy Beans	Sunflower
Chickpeas	Oats	Triticale1
Corn	Peas	Wheat1
Edible Beans	Popcorn	Wheat-Spring
Flax	Rape Seed1	Wheat-Winter
Grass Seeds	Rice

Once desired crop is chosen, touch or press confirm switch.

GreenStar™ Pro Documentation:

Synchronizes selected crop from armrest display with display mounted on cornerpost (if equipped).

Touch or press confirm switch when GreenStar Pro Documentation box (C) is highlighted.

• Checked - synchronizes selected crop together on both displays.
• Unchecked - selected crop on both displays work independently from each other.

Threshing Condition:

Threshing condition menu (D) displays the following:

• Easy
• Normal
• Tough

Once desired threshing condition is chosen, touch or press confirm switch.

Straw/Cob Condition:

Straw/Cob condition menu (E) displays the following:

• Brittle
• Normal
• Tough

Once desired straw/cob condition is chosen, touch or press confirm switch.

Grain Loss Calibration:

Adjust machine and header to acceptable loss levels for particular crop and condition.

Touch or press confirm switch when grain loss calibration icon (F) is highlighted.

NOTE: This enters current operating characteristics into memory and centers total loss activity indicator on cornerpost.

Calibration Reference Number:

Touch or press confirm switch when grain loss calibration value (G) is highlighted.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired calibration reference value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired calibration reference value on numeric display. Touch enter/accept icon to save value.

Shoe/Separator Balance

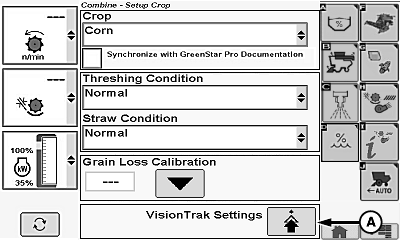

H112816-UN-09FEB15

H108629-UN-26JUL13

A - VisionTrak™ Settings Icon

B - Shoe/Separator Balance Box

C - Shoe/Separator Balance Bar Graph

D - Shoe/Separator Resolution Box

E - Shoe/Separator Resolution Bar Graph

F - Return/Back Icon

Adjusts balance of bars between shoe loss indicator and separator loss indicator located on VisionTrak™ display. Adjustment can be used to fine-tune display if losses appear to come from one area of the machine, but more losses are displayed in other area of machine due to crop conditions.

Touch or press confirm switch when VisionTrak™ settings icon (A) is highlighted.

Touch or press confirm switch when shoe/separator balance box (B) or shoe/separator balance bar graph (C) is highlighted.

Shoe/Separator Balance Box Adjustment:

Non-Touchscreen or Touchscreen: Rotate selection dial until desired shoe/separator balance value is shown. Press confirm switch to save value.

Touchscreen Only: Touch or press confirm switch when plus (+) icon or minus (-) icon is highlighted until desired shoe/separator balance value is shown.

Shoe/Separator Balance Bar Graph Adjustment:

Non-Touchscreen or Touchscreen: Rotate selection dial to increase or decrease shoe/separator balance bar graph to desired value. Press confirm switch to save value.

Touchscreen Only: Touch or press confirm switch when plus (+) icon or minus (-) icon is highlighted until desired shoe/separator balance value is shown.

Touch or press confirm switch when return/back icon (F) is highlighted to return to previous page.

Shoe/Separator Resolution

Allows operator to modify number of bars shown on VisionTrak™ display for shoe loss indicator and separator loss indicator (independent of number of center bars).

Touch or press confirm switch when VisionTrak™ settings icon (A) is highlighted.

Touch or press confirm switch when shoe/separator resolution box (D) or shoe/separator resolution bar graph (E) is highlighted.

Shoe/Separator Resolution Box Adjustment:

Non-Touchscreen or Touchscreen: Rotate selection dial until desired shoe/separator resolution value is shown. Press confirm switch to save value.

Touchscreen Only: Touch or press confirm switch when plus (+) icon or minus (-) icon is highlighted until desired shoe/separator resolution value is shown.

Shoe/Separator Resolution Bar Graph Adjustment:

Non-Touchscreen or Touchscreen: Rotate selection dial to increase or decrease shoe/separator resolution bar graph to desired value. Press confirm switch to save value.

Touchscreen Only: Touch or press confirm switch when plus (+) icon or minus (-) icon is highlighted until desired shoe/separator resolution value is shown.

Touch or press confirm switch when return/back icon (F) is highlighted to return to previous page.
