Corn Head Backshaft Speed/Adjustable Deck Plate Spacing Switch

NOTE:

H109725-UN-29JAN14

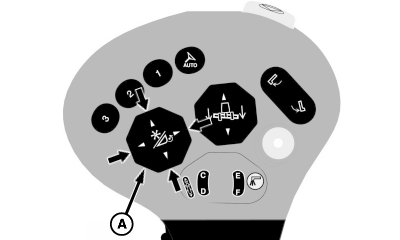

A - Backshaft Speed and Deck Plate Spacing Switch

Backshaft speed and deck plate spacing switch (A) allows operator to control the backshaft speed of the corn head and adjust deck plate spacing (if equipped).

System Requirements:

• Road transport disconnect switch must be in field position.

NOTE: Multi-speed feeder house drive can be adjusted with key switch ON. When machine is started and is engaged, feeder house operates at preset speed.

CommandTouch™ Multi-Speed Feeder House Drive (optional): When a corn head or row-crop head is attached, backshaft speed and deck plate spacing switch is used to control the backshaft speed and adjustable deck plate spacing.

Press top or bottom of switch once to activate display. Press top of switch to increase gear selection or press bottom of switch to reduce gear selection.

Current gear displays in black and desired gear flashes in blue on display until desired gear is reached.

Speeds shown are at high idle and with no load:

• 1st Gear: 480—510 rpm
• 2nd Gear: 535—565 rpm
• 3rd Gear: 590—620 rpm
• 4th Gear: 665—695 rpm
• 5th Gear: 735—765 rpm

Deck Plate Spacing (if equipped): Press left or right side of switch once to activate display. Press left side of switch again to increase spacing and press right side of switch to decrease spacing.
