Emergency Exit

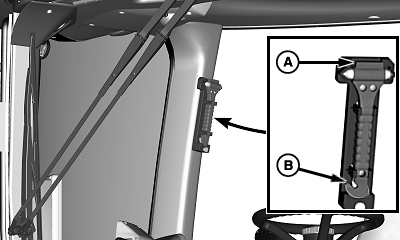

  1. H113084
    H113084-UN-26FEB15

    A - Hammer

    B - Knife

    Pull down on top to remove hammer (A).


  2. If seat belt does not unbuckle, cut with knife (B) in handle.

  3. If doors do not open, use hammer to break window glass and exit cab. See your John Deere dealer for window replacement.

SS43267,000052E-19-20160105
