Belt Pickup Clean Out Operation

1. NOTE:


   H94644-UN-27JAN10

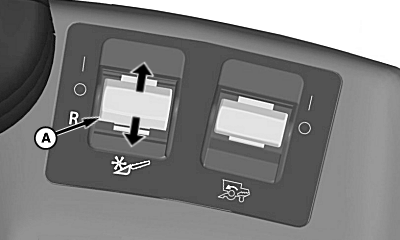

   A - Header Engage/Feeder House Reverser Switch

   Only works on belt pickup platforms.

   Clean out operation simplifies operator involvement and improves productivity in returning to harvest after a slip clutch event has occurred. This operation delays re-engagement of the header belt drive system which allows an ejected slug to be reingested into the feeder house in smaller segments.

   In order for clean out operation to begin, the process of engaging, reversing, and engaging again must occur with in 30 sec.

   With separator engaged, move header engage/feeder house reverser switch (A) forward to engage header, backward to engage feeder house reverser and forward again to engage header.

---




2. Feeder house clean out screen appears on display.

3. NOTE: To exit clean out operation early, press resume button or header raise or lower button on multi-function lever.

   When clean out operation is complete, belts return to the last known speed.

   IMPORTANT: Never attempt to force ”slugs” through machine by repeated cycling of reverser drive. Repeated cycling shortens life of components.
