Tailboard—Adjusting (Deluxe Residue)

CAUTION:

H98131
H98131-UN-20SEP10

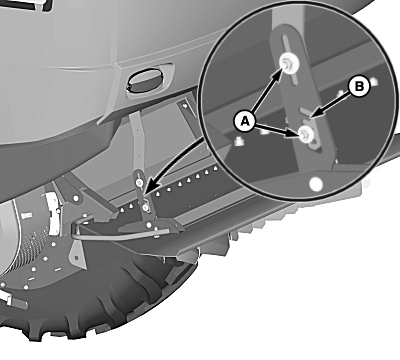

A - Cap Screws (4 Used)

B - Notches

Shut OFF engine, set park brake and remove key.

Loosen cap screws (A) on both sides of tailboard.

Adjust tailboard up or down in notches (B) to control straw spread width.

Tighten cap screws on both sides of tailboard to lock into position.

SS43267,000060A-19-20150604
