Tailboard Vanes (Manual Adjust)—Adjusting (Deluxe Residue)

CAUTION:

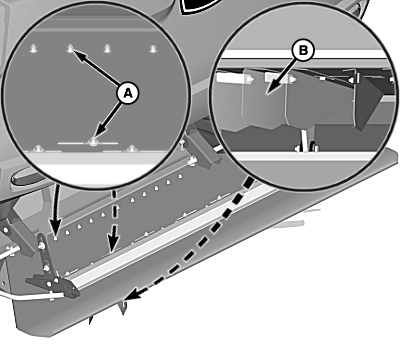

H98133-UN-20SEP10

A - Nuts

B - Tailboard Vane

NOTE: Adjustments can be made to tailboard vanes if factory settings do not produce adequate spread width or even distribution.

Tailboard vanes are factory set for 9.1 m (30 ft.) platforms.

Loosen nuts (A) and adjust tailboard vane (B) as needed to control distribution of straw spread width. See Tailboard Vanes (Manual Adjust)—Factory Settings later in this section.

Tighten nuts and repeat as needed on remaining tailboard vanes.
