Position Engine Air Scoop (Standard Field Position)

1. IMPORTANT:

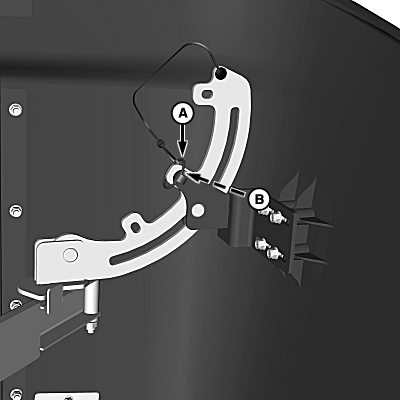

   H114498-UN-10JUN15

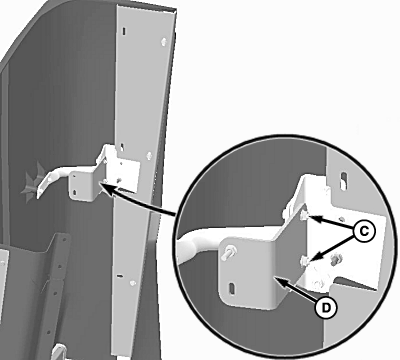

   H111378-UN-06JUN14

   Transport Position

   A - Lock-Out Pin

   B - Holes

   C - Nuts, M8 (2 used)

   D - Bracket

   Engine air scoop must be placed into standard field position when harvesting to prevent overheating of engine.

   Remove lock-out pin (A) and move air scoop outward until holes (B) align.

---




2. Install previously removed lock-out pin.

3. Remove nuts (C) and bracket (D).

4. Install previously removed nuts back onto cap screws.

5.

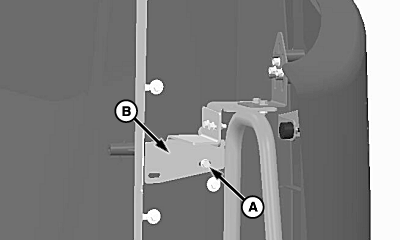

   H111392-UN-06JUN14

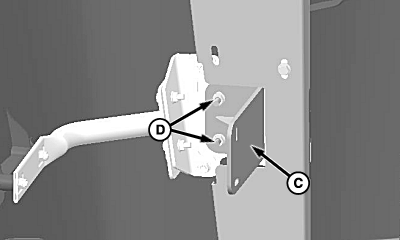

   H111393-UN-06JUN14

   Standard Field Position

   A - Cap Screw, M8 x 40

   B - Bracket

   C - Bracket

   D - Nuts, M8 (2 used)

   Move air scoop outward and install cap screw (A) through bracket (B) as shown.

---




6. Install bracket (C) as shown and retain with nuts (D).
