Position Engine Air Scoop (Extended Field Position)

1. IMPORTANT:

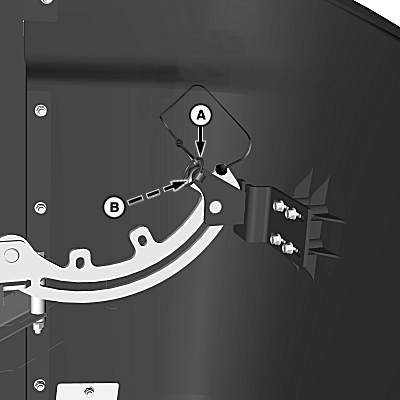

   H114499-UN-10JUN15


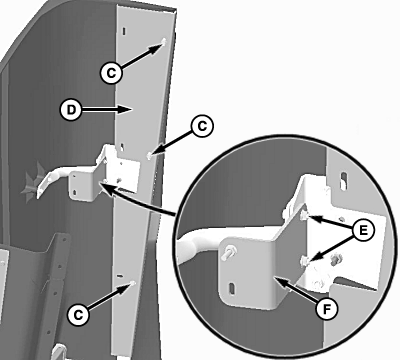

   H111386-UN-06JUN14

   Transport Position

   A - Lock-Out Pin

   B - Holes

   C - Cap Screws, M8 x 25 (3 used)

   D - Panel

   E - Nut, M8 (2 used)

   F - Bracket

   Engine air scoop must be placed into extended field position when harvesting in high ambient temperature conditions and/or high altitude areas to prevent overheating of engine.

   Remove lock-out pin (A) and move air scoop outward until hole (B) align.

---




2. Install previously removed lock-out pin.

3. Remove and retain cap screws (C) from panel (D).

4. Remove nuts (E) and bracket (F).

5.

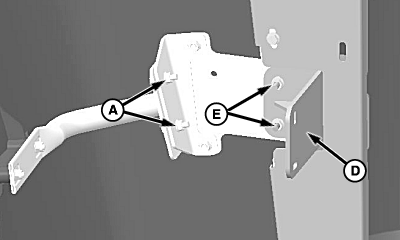

   H111394-UN-06JUN14

   Extended Field Position

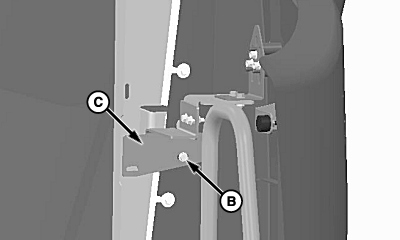

   H111395-UN-06JUN14

   A - Nuts, M8 (2 used)

   B - Cap Screws, M8 x 40 (2 used)

   C - Bracket

   D - Bracket

   E - Nuts, M8 (2 used)

   Install previously removed nuts (A) onto cap screws.

---




6. Move air scoop outward and install cap screw (B) through bracket (C) as shown.

7. Install bracket (D) as shown and retain with nuts (E).

8.

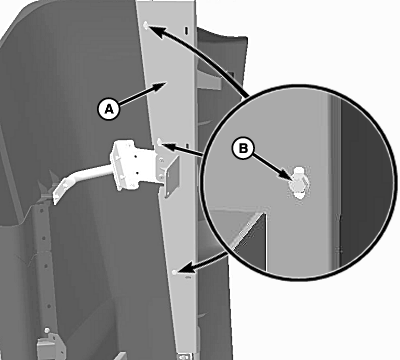

   H111396-UN-06JUN14

   A - Panel

   B - Cap Screws, M8 x 25 (3 used)

   Install previously removed panel (A) and retain with cap screws (B).

---
