Position Engine Air Scoop (Transport Position)

1. IMPORTANT:


   H114500-UN-10JUN15


   H111374-UN-06JUN14

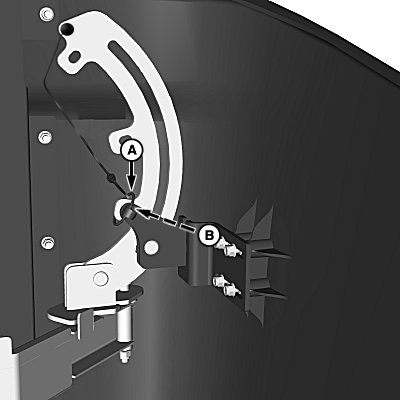

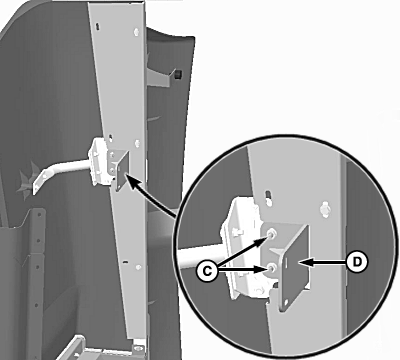

   Standard Field Position

   A - Lock-Out Pin

   B - Holes

   C - Cap Screws, M8 x 40 and Nuts, M8 (2 used)

   D - Bracket

   Engine air scoop must be placed into transport position when local roadway restrictions apply. Follow your local country regulations.

   NOTE: Before field operations, engine air scoop must be moved to selected field position.

   Remove lock-out pin (A) and move air scoop inward until holes (B) align.

---




2. Install previously removed lock-out pin.

3. Remove and retain cap screws and nuts (C) and bracket (D).

4.
   H111390-UN-06JUN14


   H111391-UN-06JUN14

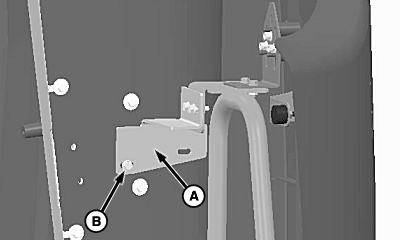

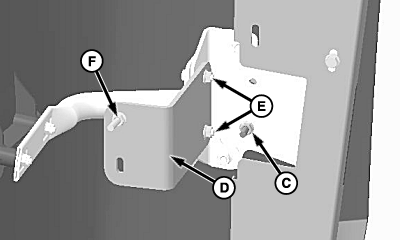

   Transport Position

   A - Bracket

   B - Cap Screw, M8 x 40

   C - Nut, M8

   D - Bracket

   E - Nuts, M8 (2 used)

   F - Cap Screw, M8 x 40 and Nut, M8

   Move air scoop inward and install cap screw through bracket (A) as shown and retain with nut (C).

---




5. Install previously removed bracket (D) and retain with nuts (E).

6. Install previously removed cap screw and nut (F) on bracket as shown.
