John Deere FarmSight™ Ethernet Connection (If Equipped)
NOTE:

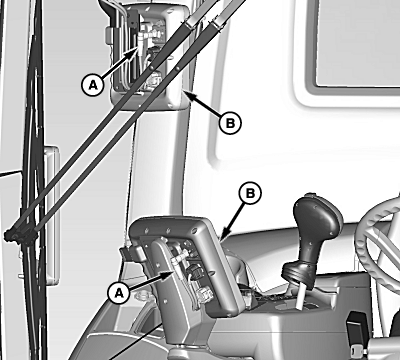

H106182-UN-15NOV12
A - Ethernet Cables
B - GreenStar™ 3 2630 Display
John Deere John Deere FarmSight™ ready machines come installed with an ethernet cable which is routed to the armrest display (if equipped with GreenStar™ 3 2630 display).Ethernet cables (A) are used to connect the GreenStar™ 3 2630 display (B) located on the armrest or cornerpost with the John Deere FarmSight™ technology. Additional control units are located underneath the armrest on the cab floor. Refer to specific John Deere FarmSight™ Operator’s Manual for further information.
|
GreenStar is a trademark of Deere & Company John Deere FarmSight is a trademark of Deere & Company |
