Engine Wiring Layout and Sensor Location

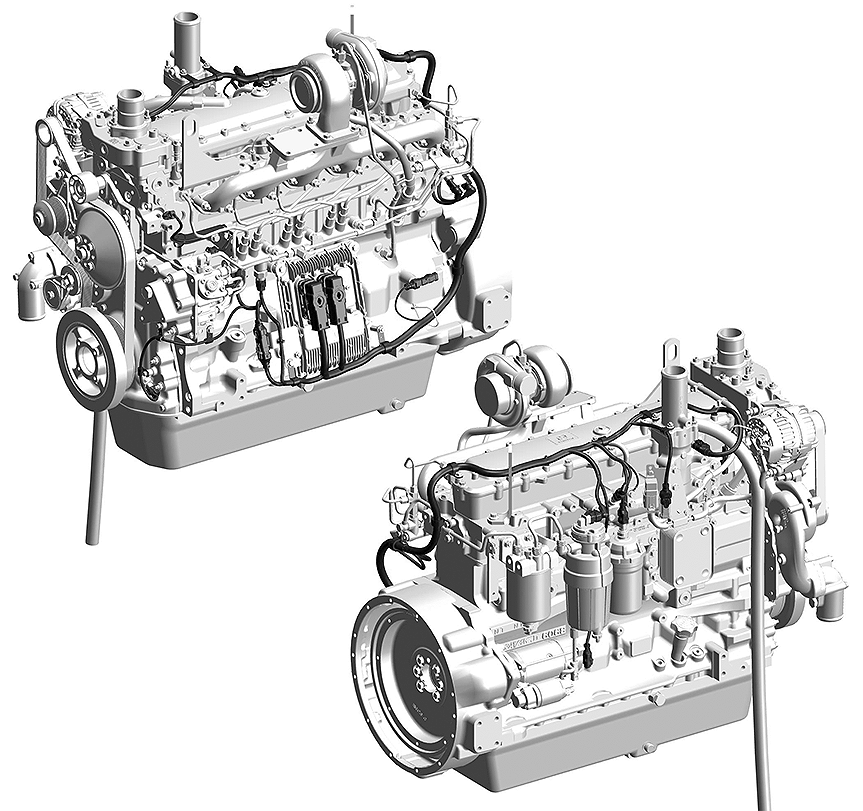

RG27909-UN-25FEB16

Engine Wiring Layout

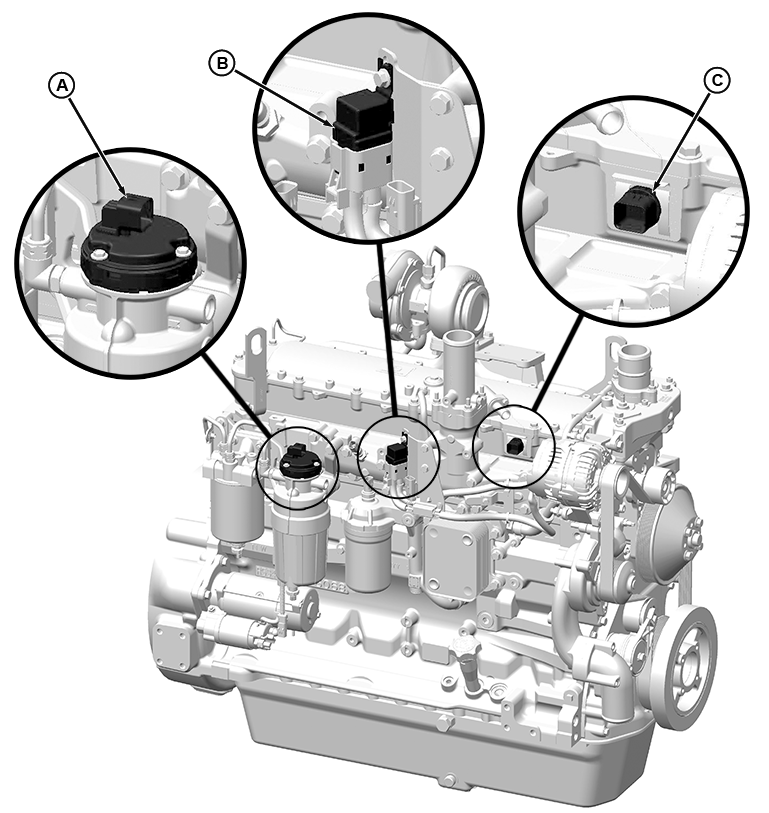

RG27905-UN-25FEB16

A - Low-Pressure Fuel Pump

B - Glow Plug Relay

C - Fuel Injector Harness Connector

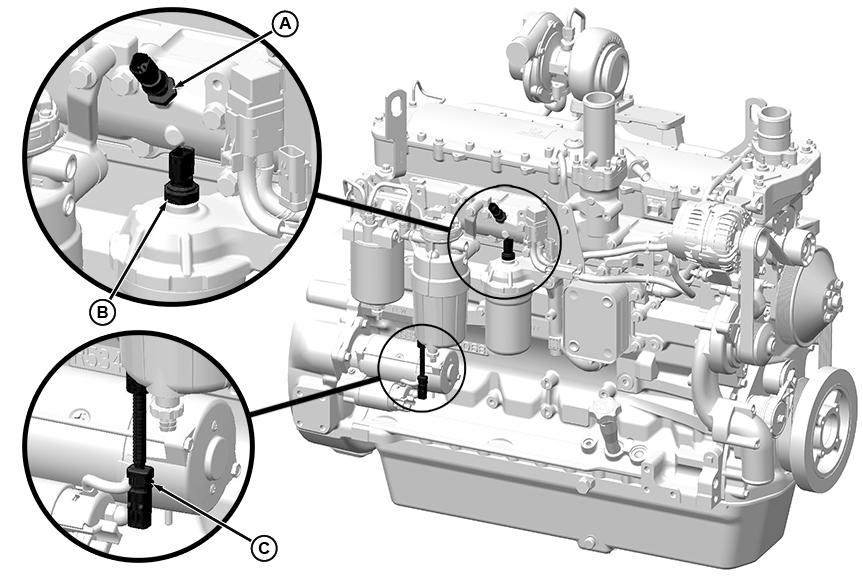

RG27906-UN-25FEB16

A - Manifold Air Temperature Sensor

B - Engine Oil Pressure Sensor

C - Water-In-Fuel Sensor

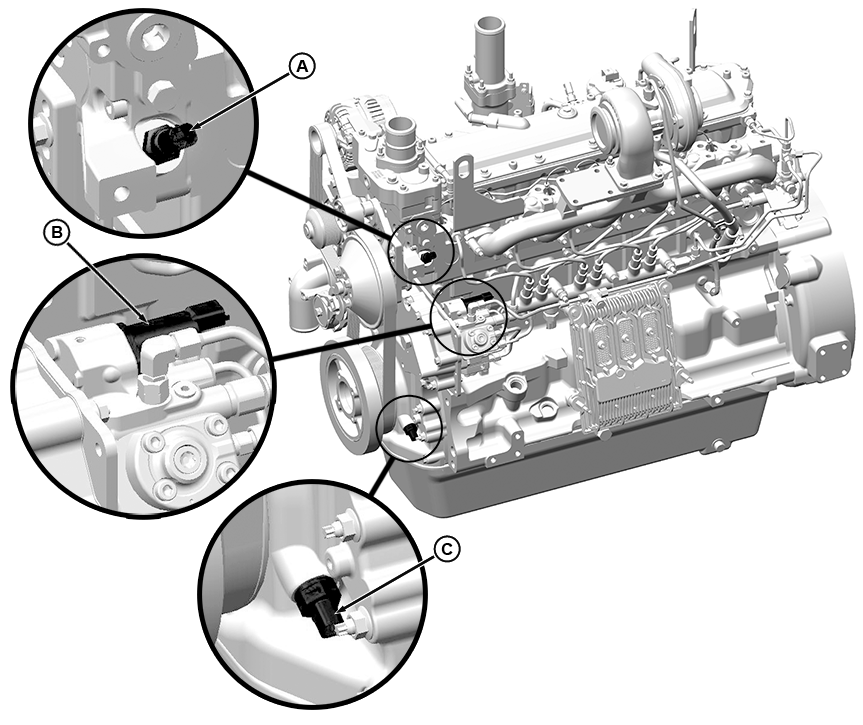

RG27907-UN-25FEB16

A - Engine Coolant Temperature Sensor

B - Suction Control Valve

C - Crankshaft Position Sensor

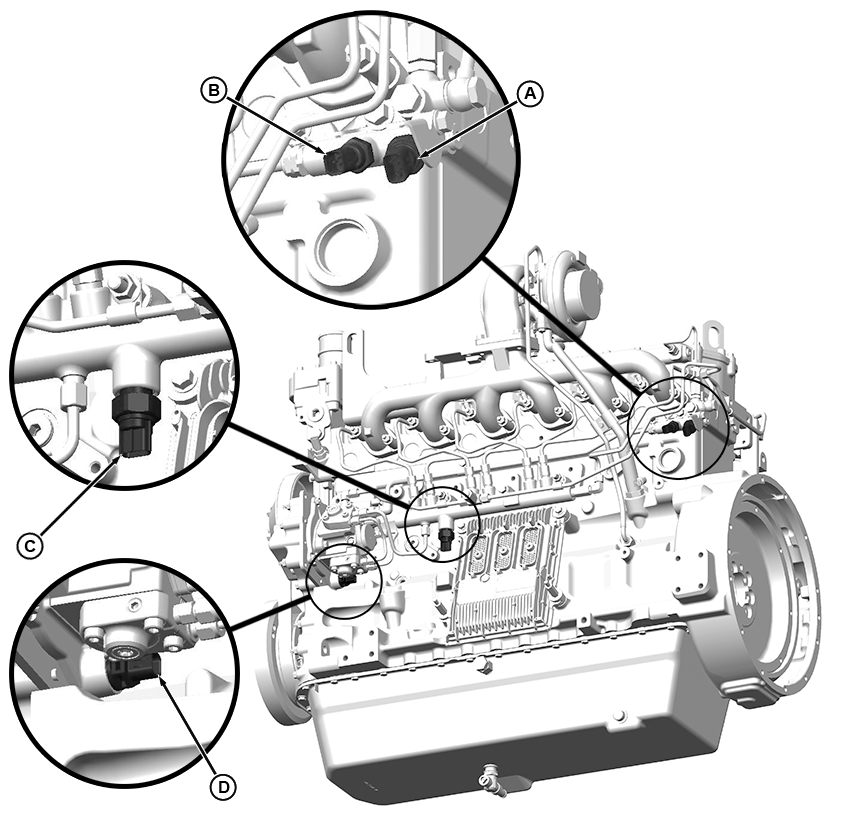

RG27908-UN-25FEB16

A - Low-Pressure Fuel Pressure Sensor

B - Fuel Temperature Sensor

C - Fuel Rail Pressure Sensor

D - Camshaft Position Sensor
