Engine Wiring Diagrams

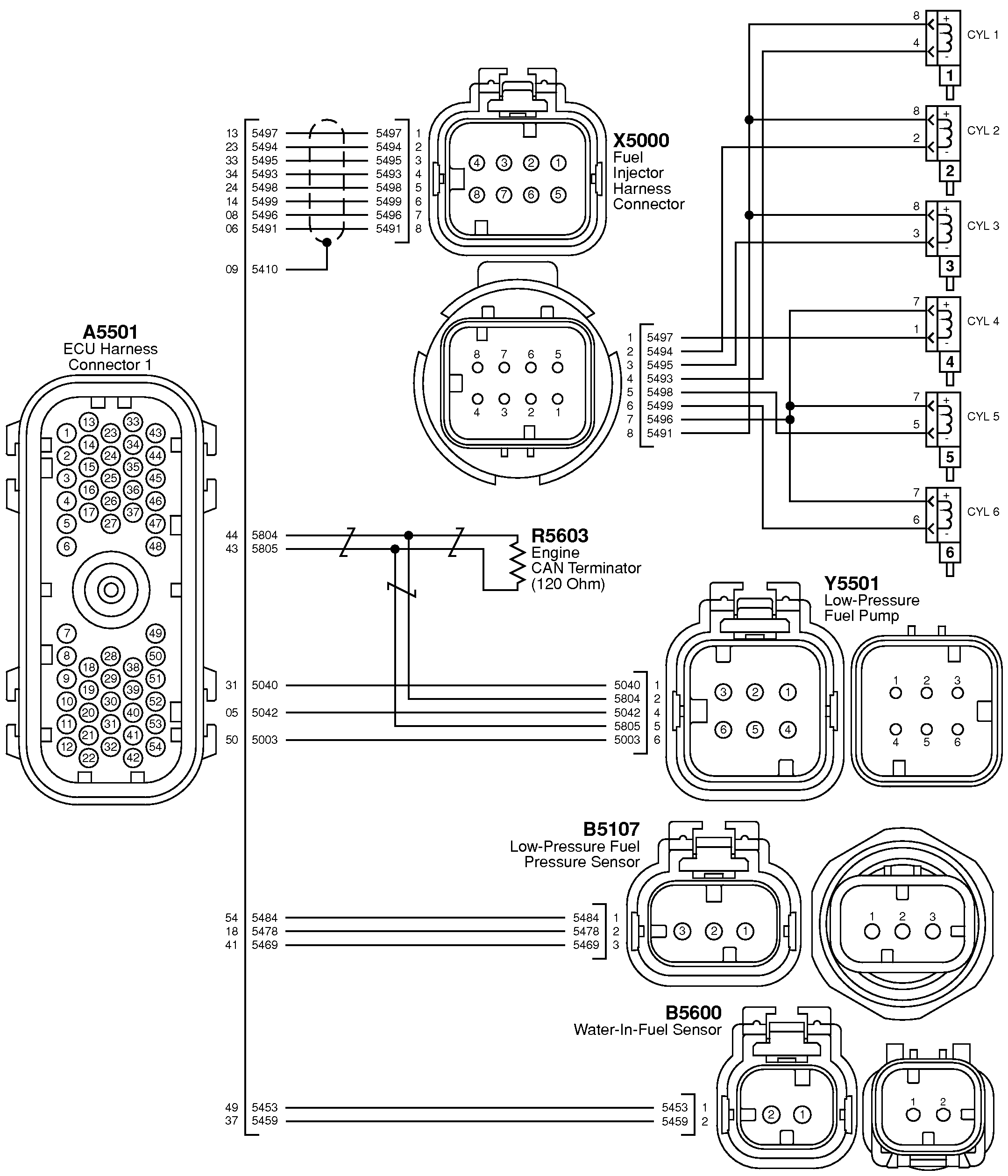

RG27898-UN-24FEB16

A5501 - ECU Harness Connector 1

A5501-05 - [5042 Red] Low-Pressure Fuel Pump Unswitched Power

A5501-06 - [5491 Brown] Injector #4, #5, #6 Power

A5501-08 - [5496 Blue] Injector #1, #2, #3 Power

A5501-09 - [5410 Black] Wiring Shield

A5501-13 - [5497 Violet] Injector #4 Pulse

A5501-14 - [5499 White] Injector #6 Pulse

A5501-18 - [5478 Gray] 5 V Sensor Supply #2 Return

A5501-23 - [5494 Yellow] Injector #2 Pulse

A5501-24 - [5498 Gray] Injector #5 Pulse

A5501-31 - [5040 Black] Low-Pressure Fuel Pump Return

A5501-33 - [5495 Green] Injector #3 Pulse

A5501-34 - [5493 Orange] Injector #1 Pulse

A5501-37 - [5459 White] Water-In-Fuel Sensor Return

A5501-41 - [5469 White] Low-Pressure Fuel Pressure Sensor Signal

A5501-43 - [5805 Green] Engine CAN Low

A5501-44 - [5804 Yellow] Engine CAN High

A5501-49 - [5453 Orange] Water-In-Fuel Sensor Signal

A5501-50 - [5003 Orange] Low-Pressure Fuel Pump Power On Signal

A5501-54 - [5484 Yellow] 5 V Sensor Supply #2 Positive

B5107 - Low-Pressure Fuel Pressure Sensor

B5600 - Water-In-Fuel Sensor

R5603 - Engine CAN Terminator (120 Ohm)

X5000 - Fuel Injector Harness Connector

Y5501 - Low-Pressure Fuel Pump

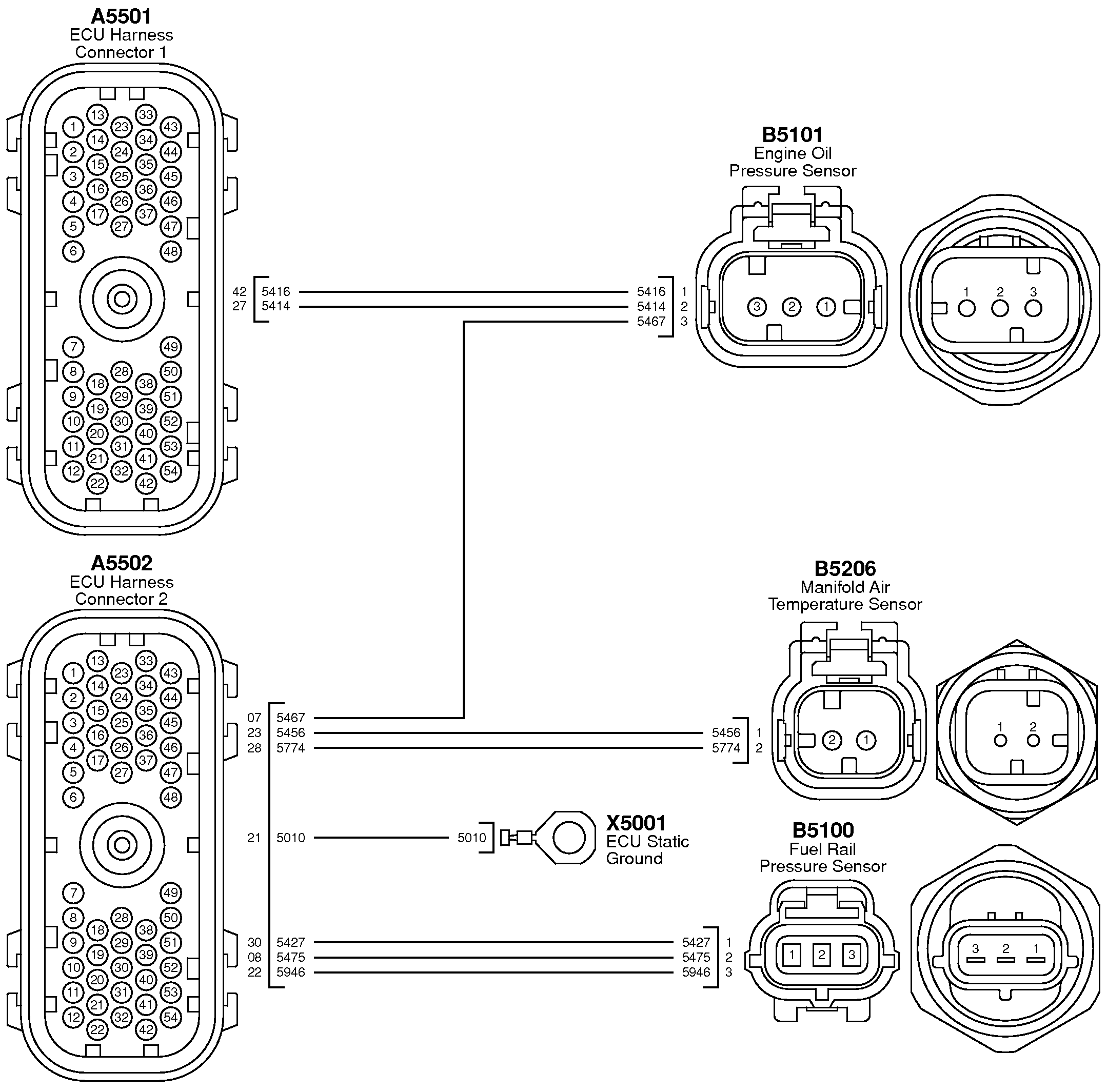

RG27899-UN-29FEB16

A5501 - ECU Harness Connector 1

A5501-27 - [5414 Yellow] 5 V Sensor Supply #8 Return

A5501-42 - [5416 Blue] 5 V Sensor Supply #8 Positive

A5502 - ECU Harness Connector 2

A5502-07 - [5467 Violet] Engine Oil Pressure Sensor Signal

A5502-08 - [5475 Green] Fuel Rail Pressure Sensor Signal

A5502-21 - [5010 Black] ECU Static Ground

A5502-22 - [5946] 5 V Sensor Supply #1 Positive

A5502-23 - [5456 Blue] Manifold Air Temperature Sensor Signal

A5502-28 - [5774 Yellow] Manifold Air Temperature Sensor Return

A5502-30 - [5427 Violet] 5 V Sensor Supply #1 Return

B5100 - Fuel Rail Pressure Sensor

B5101 - Engine Oil Pressure Sensor

B5206 - Manifold Air Temperature Sensor

X5001 - ECU Static Ground

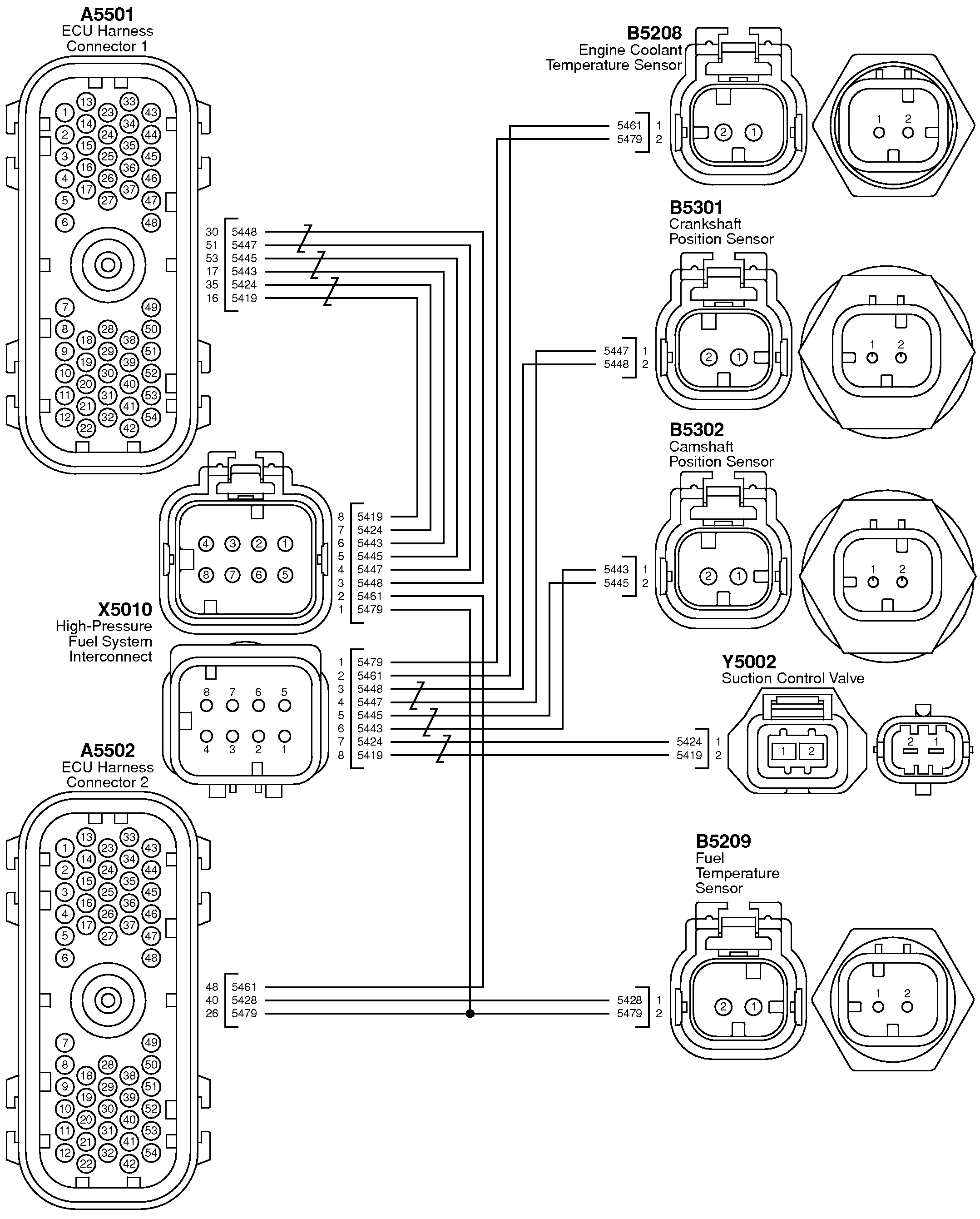

RG27900-UN-24FEB16

A5501 - ECU Harness Connector 1

A5501-16 - [5419 White] Suction Control Valve Drive Negative

A5501-17 - [5443 Orange] Camshaft Position Sensor Return

A5501-30 - [5448 Gray] Crankshaft Position Sensor Return

A5501-35 - [5424 Yellow] Suction Control Valve Drive Positive

A5501-51 - [5447 Violet] Crankshaft Position Sensor Signal

A5501-53 - [5445 Green] Camshaft Position Sensor Signal

A5502 - ECU Harness Connector 2

A5502-26 - [5479 White] Sensor Return #1

A5502-40 - [5428 Gray] Fuel Temperature Sensor Signal

A5502-48 - [5461 Brown] Engine Coolant Temperature Sensor Signal

B5208 - Engine Coolant Temperature Sensor

B5209 - Fuel Temperature Sensor

B5301 - Crankshaft Position Sensor

B5302 - Camshaft Position Sensor

X5010 - High-Pressure Fuel System Interconnect

Y5002 - Suction Control Valve

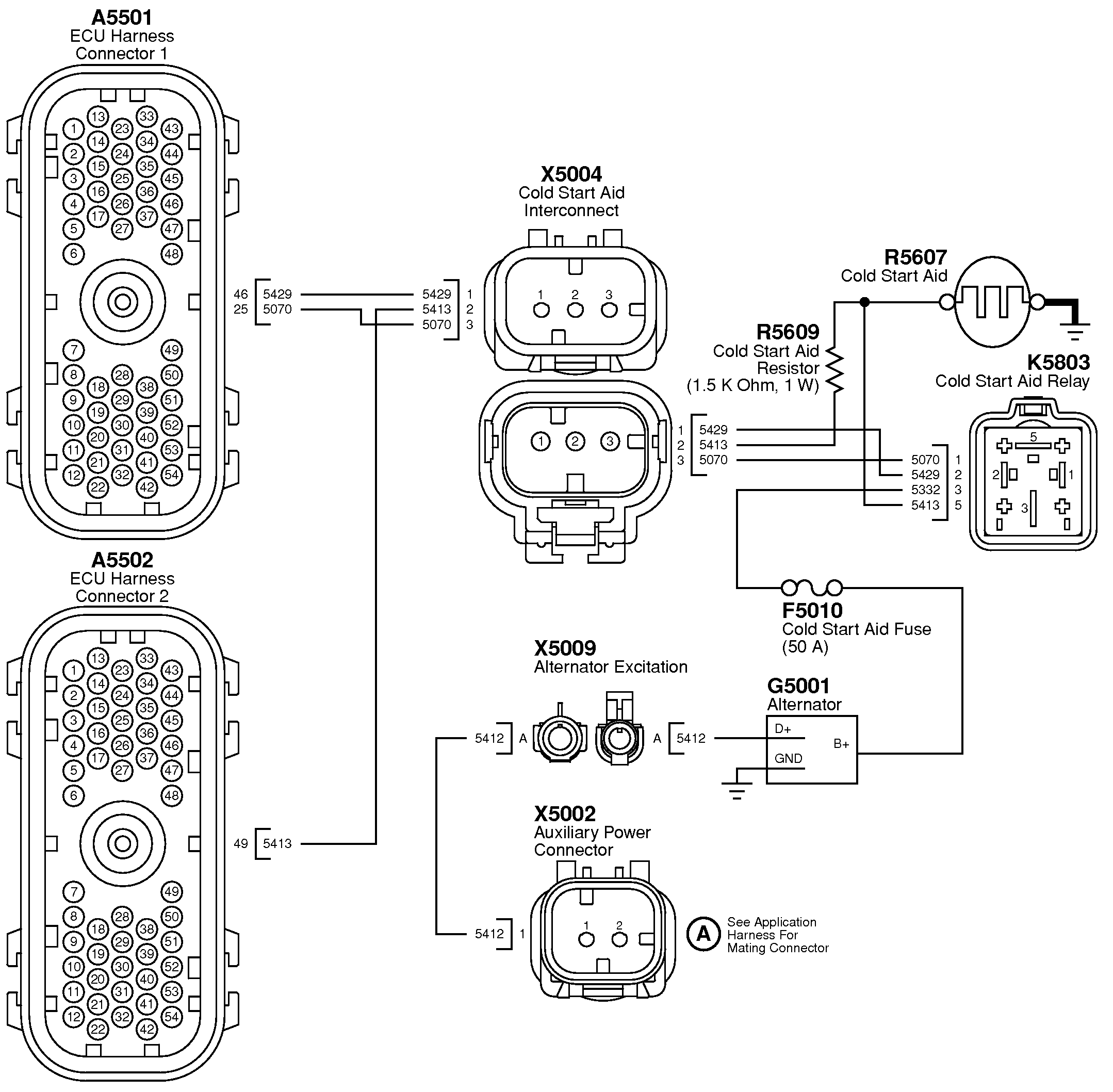

RG27901-UN-24FEB16

A - See Application Harness For Mating Connector

A5501 - ECU Harness Connector 1

A5501-25 - [5070 Black] Cold Start Aid Relay Ground

A5501-46 - [5429 White] Cold Start Aid Relay Control

A5502 - ECU Harness Connector 2

A5502-49 - [5413 Orange] Cold Start Aid Relay Feedback

F5010 - Cold Start Aid Fuse (50 A)

G5001 - Alternator

K5803 - Cold Start Aid Relay

K5803-3 - [5332 Red] Unswitched Battery

R5607 - Cold Start Aid

R5609 - Cold Start Aid Resistor (1.5 k Ohm, 1 W)

X5002 - Auxiliary Power Connector

X5002-1 - [5412 Red] Alternator Excitation

X5004 - Cold Start Aid Interconnect

X5009 - Alternator Excitation
