Warming Engine

RG13724-UN-11NOV04

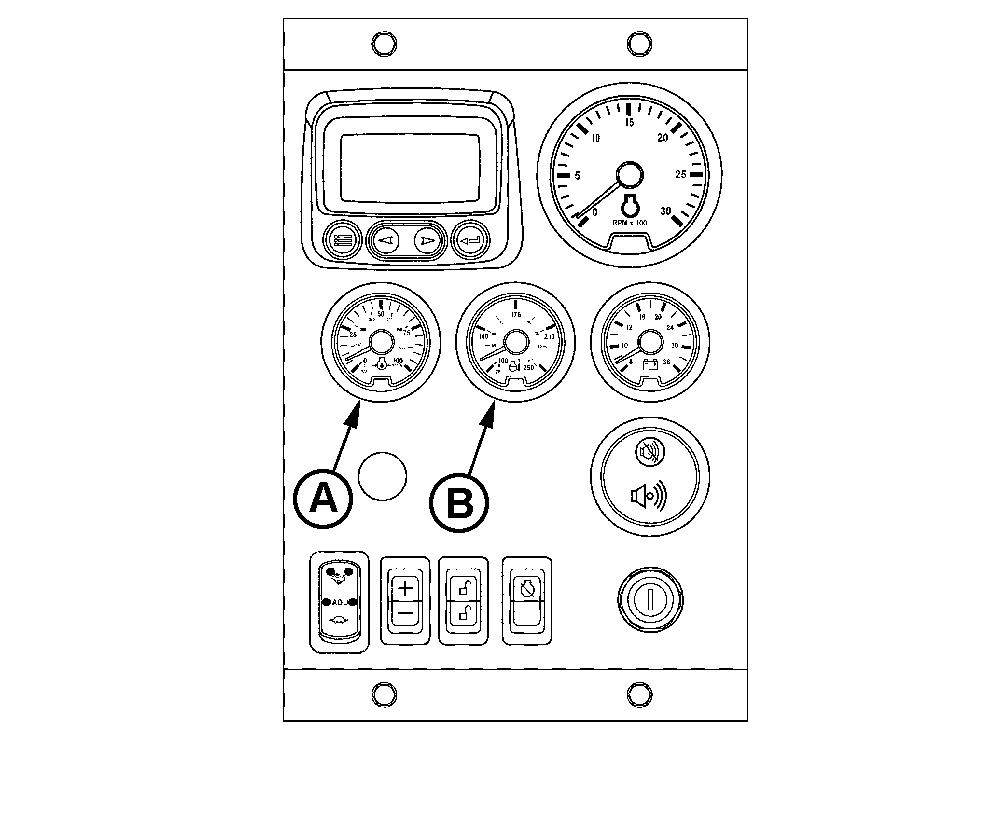

Oil Pressure and Coolant Temperature Gauges On Panel

A - Engine Oil Pressure Gauge

B - Engine Coolant Temperature Gauge

IMPORTANT: To assure proper lubrication, operate engine at or below 1200 rpm with no load for 1–2 minutes. Extend this period 2–4 minutes when operating at temperatures below freezing.

Engines used in generator set applications where the governor is locked at a specified speed may not have a low idle function. Operate these engines at high idle for 1 to 2 minutes before applying the load. This procedure does not apply to standby generator sets where the engine is loaded immediately upon reaching rated speed.

1. Check oil pressure gauge (A) as soon as engine starts. If gauge needle does not rise above minimum oil pressure specification of 100 kPa (1.0 bar) (14.5 psi) within 5 seconds, stop the engine and determine the cause. Normal engine oil pressure should be 360-400 kPa (3.6-4.0 bar) (52-58 psi) at rated speed (2200 rpm) with oil at normal operating temperature of 125°C (257°F).

2. NOTE: On certain engines, the oil pressure and coolant temperature gauges are replaced by indicator warning lights. The lights must be "OFF" when engine is running.

   Watch coolant temperature gauge (B). Do not place engine under full load until it is properly warmed up. The normal engine coolant temperature range is 85°—103°C (185°—217°F).

   NOTE: It is a good practice to operate the engine under a lighter load and at lower speeds than normal for the first few minutes after start-up.
