Engine Shutdown Codes

1.
   RG13172-UN-26SEP03

   Normal Operation

   During normal operation the single or four parameter screen will be displayed.

---




2.
   RG13238-UN-29SEP03

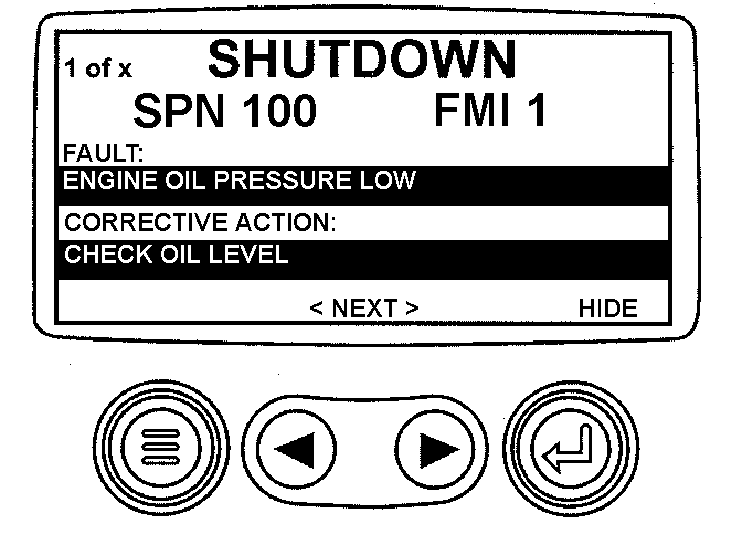

   Shutdown Message

   When the diagnostic gauge receives a severe trouble code from an engine control unit, the single or four parameter screen will be replaced with the "Shutdown" message. The SPN and FMI number will be displayed along with a description of the problem and the corrective action needed.

   If the word "Next" appears above the arrow keys, there are more trouble codes that can be viewed by using the arrow keys to scroll to the next trouble code.

---




3.
   RG13239-UN-29SEP03

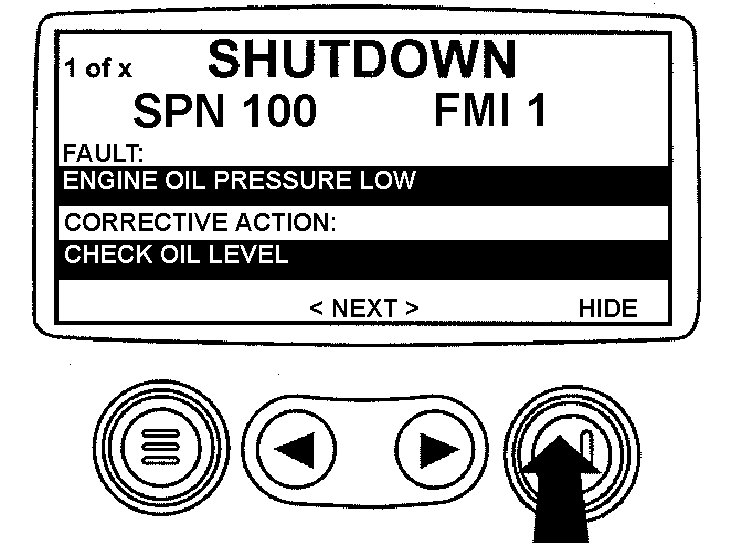

   Hide Trouble Code

   To acknowledge and hide the trouble code and return to the single or four parameter display, press the "Enter" key".

   IMPORTANT: Ignoring the shutdown message can result in severe engine damage.

---




4.
   RG13179-UN-26SEP03

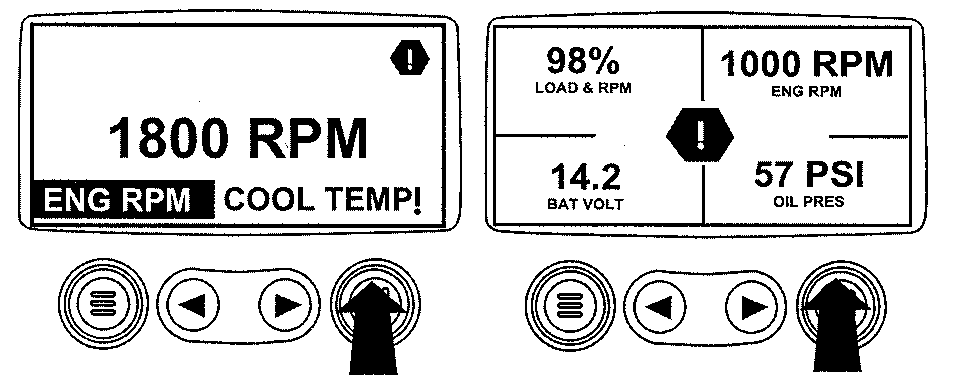

   Flashing Shutdown Icon

   The display will return to the single or four parameter display, but the display will contain the "Shutdown" icon. Pressing the "Enter" key will redisplay the hidden trouble code.

   IMPORTANT: Ignoring the shutdown message can result in severe engine damage.

---




5.
   RG13239-UN-29SEP03

   Redisplay Trouble Code

   Pressing the "Enter" key once again will hide the trouble code and return the screen to the single or four parameter display.

---




6.
   RG13180-UN-26SEP03

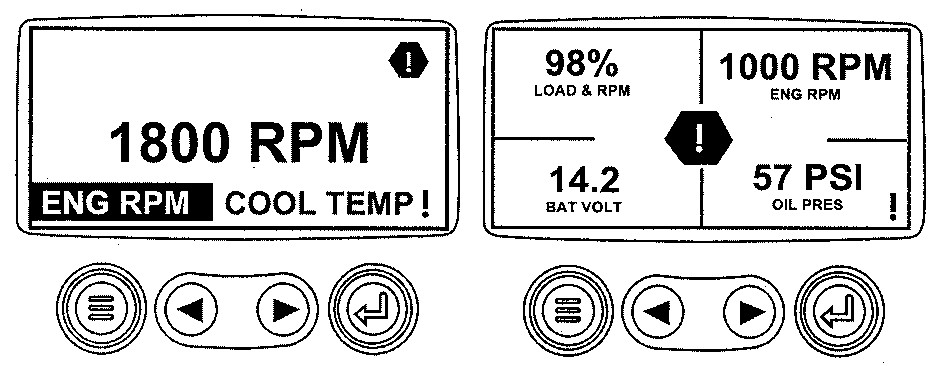

   Shutdown Icon

   The single or four parameter screen will display the shutdown icon until the trouble code condition is corrected.

   IMPORTANT: Ignoring the shutdown message can result in severe engine damage.

---
