Once a Year

Lubricate fitting located on rotors (A), fingers on digidrive couplings (C), pivot pins (B) (on 756 only), pivoting pins (D) (on 754 model only) and frame pivot (E) (on 756 model only) on each side of machine.

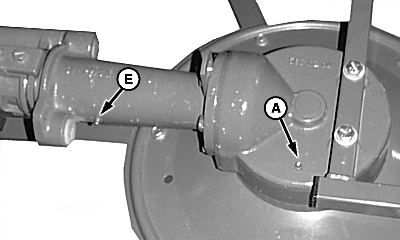

A-Grease Fitting

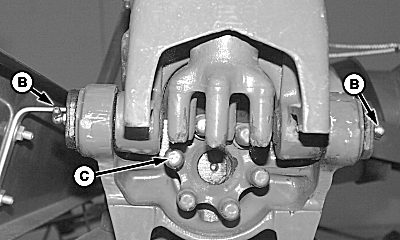

B-Pivot Pin Grease Fitting
C-Grease (Finger)

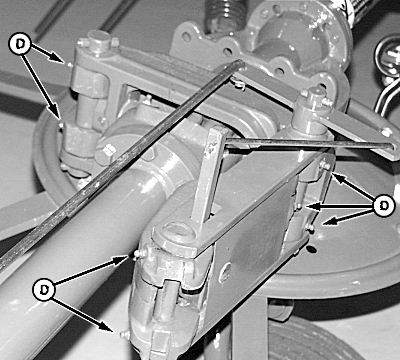

D-Grease Fitting (Frame Pivot)
E-Grease Fitting

EX,945IN,L1 -19-29SEP97-1/1
