Vertically align drawbar hitch pin hole with centerline of tractor power takeoff shaft.
CAUTION: To avoid personal injury, use locking pins to hold drawbar stationary when operating PTO-driven implements.
IMPORTANT: Before attaching hay tedder, be sure to adjust drawbar. Replace all shielding.

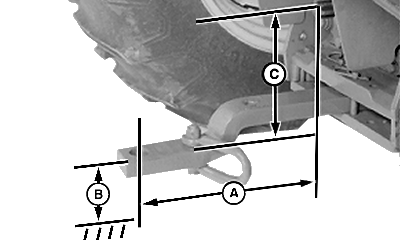

A-Dimension, 356 mm (14 in.) B-Dimension, 330-432 mm (13-17 in.) C-Dimension, 152-305 mm (6-12 in.)
EX,945IV,A2 -19-14JUN99-1/1
CAUTION:
To avoid personal injury, use locking pins to hold drawbar stationary when operating PTO-driven implements.
