Attaching PTO Driveline

causym CAUTION: Shut off tractor engine before attaching PTO driveline. Entanglement in rotating driveline can cause serious injury or death.

IMPORTANT: Keep driveline and powershaft splines clean of paint, dirt and chaff. Apply John Deere Moly High Temperature EP Grease or John Deere EP Moly Grease on tractor PTO shaft before attaching PTO driveline.

1. Shut off tractor engine.

TS198

EX,945IW,I -19-13FEB97-1/2

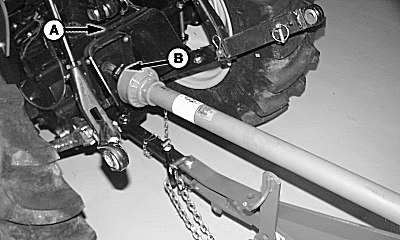

2. Raise tractor PTO shield (A), if equipped.

3. Push in pin (B) and install shaft to tractor PTO. Release pin and allow pin to lock in place.

4. Lower tractor PTO shield.


A-Shield
B-PTO Pin

E51488

EX,945IW,I -19-13FEB97-2/2
