Detaching Hay Tedder From Tractor-756

CAUTION: To avoid bodily injury or machine damage whenever an implement is detached, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation.

To prevent personal injury caused by unexpected movement:

1. Park machines on a level surface
2. Engage tractor parking brake and/or place transmission in "Park"
3. Disengage PTO
4. Shut off tractor engine and remove key

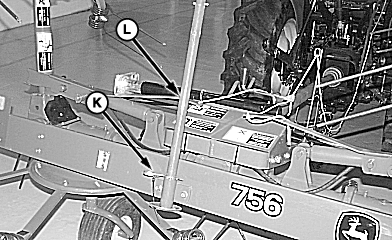

1. Pull pin (K), lower rear stand (L) and install pin.

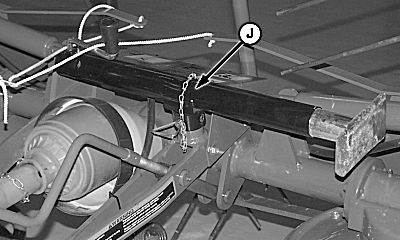

2. Remove jackstand from storage position (J), and install on bracket (H) in the park position.

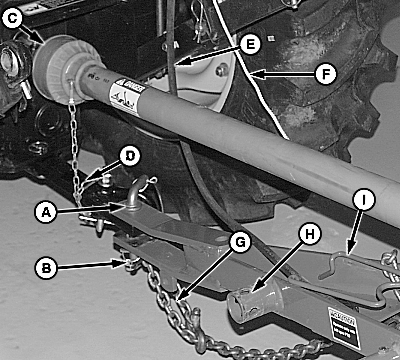

3. Raise PTO stand (I), remove PTO safety chain (D), and remove PTO shaft (C).

4. Remove pull cord (F) from tractor.

5. Remove hydraulic hose (E) from SCV on tractor.

6. Remove safety chain (G).

7. Remove clip (B) and hitch pin (A) from hitch of tedder.

A-Hitch Pin
B-Clip
C-PTO Shaft
D-PTO Safety Chain
E-Hydraulic Hose
F-Pull Latch
G-Safety Chain
H-Jackstand Bracket
I-PTO Stand
J-Jackstand Storage Position
K-Pin
L-Rear Stand

EX,945IW,N -19-21MAY99-1/1
