Installing Pull Rods-754

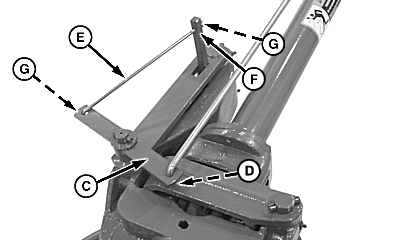

2. Attach pull rod to lever (C) with a 11 x 22 x 2 mm washer and a 4 x 22 mm pin (D).

3. Attach link (E) to lever (B) and lock (F) using two 3 x 20 mm spring pins (G).

4. Repeat procedure on opposite side.

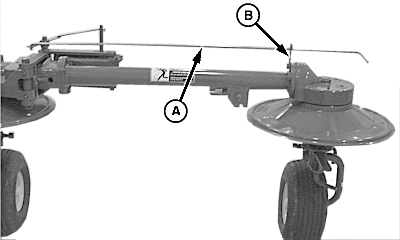

A-Pull Rod
B-Plate
C-Lever
D-Pin, 4 x 22 mm
E-Link
F-Lock
G-Spring Pins, 3 x 20 mm (2 used)

OUO1078,0000614 -19-25JUL02-1/1
