Install Drawbar and Crank Handle

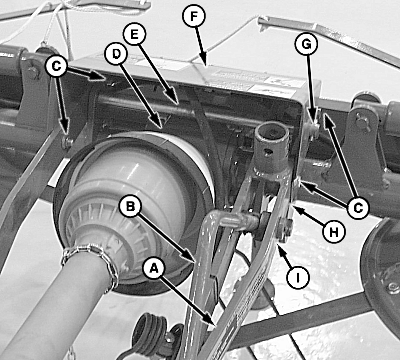

2. Install cover (F) on tongue (A) with four M12 x 30 cap screws (C) and four M12 lock nuts. Do not tighten at this time.

3. Install tongue assembly (A) to the mounting brackets positioned on either side of gearbox (D) with shaft (E) and two 8 x 40 mm spring pins (G).

4. Tighten four cap screws (C).

5. Install crank handle (B) to mounting bracket with bushing (H), 6 x 30 mm spring pin and 10 x 30 mm spring pin (I).

A-Tongue
B-Handle
C-Cap Screws
D-Gearbox
E-Shaft
F-Cover
G-Spring Pin, 8 x 40 mm
H-Bushing
I-Pin, 10 x 30 mm
