Install Outer Rotor Assemblies to Center Frame-756

IMPORTANT: Couplings must be lined up properly when installing hinge or damage may result. Fingers with O-rings represent timing marks.

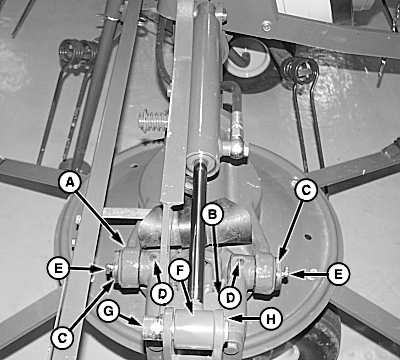

1. Line up pivot arm (A) and outer pivot arm (B).

2. Install pivot pin (C) and secure with 8 x 55 mm spring pin (D).

3. Install 5 x 55 mm spring pin into center of first spring pin (D), with splits in pins opposite of each other.

4. Install grease fittings (E).

5. Grease fingers and install flexible guard.

6. Install hydraulic cylinder (F) into mounting bracket.

7. Install pin (G) and clip (H).

8. Repeat procedure for opposite side.

A-Pivot Arm
B-Outer Pivot Arm
C-Pivot Pin
D-Spring Pin, 8 x 55 mm
E-Grease Fittings
F-Hydraulic Cylinder
G-Pin
H-Clip

OUO1078,0001504 -19-04APR02-1/1
