Install Wheels

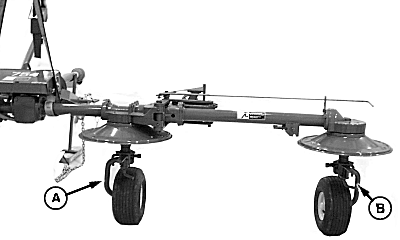

1. Install inside wheel (A) with arm to the middle of machine.

2. Locate arm (B) to the outside of machine.


A-Inside Arm
B-Outside Arm

E51547

OUO1078,0001505 -19-04APR02-1/3

756 Tedder

1. Install wheel assembly on rotor shaft marked with matching number (A) and position it so that the wheel columns point forward.

NOTE: Make sure roll pins are fitted 180° to each other and that the slots are facing the direction of rotor axle.

2. Install 12 x 55 mm spring pin and 7 x 55 mm spring pin (B).


A-Rotor and Wheel Match
B-Spring Pins

E51529

Wheel Assembly (756 Model)

OUO1078,0001505 -19-04APR02-2/3

754 Tedder

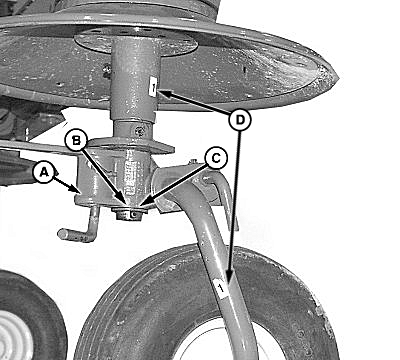

1. Install wheel Assembly (A). Match rotor and wheel assembly number (D).

NOTE: Make sure roll pins are fitted 180° to each other and that the slots are facing the direction of rotor axle.

2. Install spacer (B) and drive 12 x 55 mm spring pin (C) into place.


A-Wheel Assembly
B-Spacer
C-Spring Pin
D-Matching Numbers

E51542

Wheel Assembly (754 Model)

OUO1078,0001505 -19-04APR02-3/3
